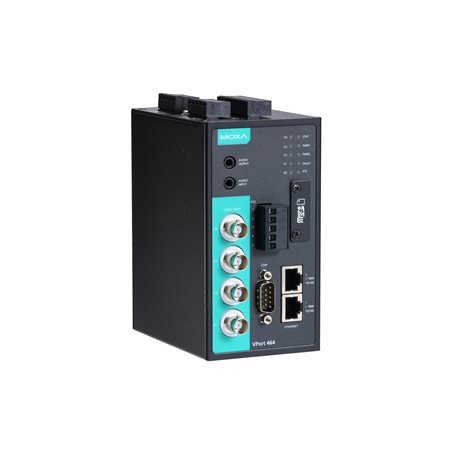

Moxa VPort 464

Artikelnummer: VPort 464
Kategorie: VPort 464 Series
Hersteller: Moxa

4-channel H.264/MJPEG industrial video encoder, 2 10/100/1000BaseT(X) Ethernet ports, -25 to 60°C operating temperature

1.487,64 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

VPort 464

VPort 464 Series

4-channel H.264/MJPEG industrial video encoder, 2 10/100/1000BaseT(X) Ethernet ports, -25 to 60°C operating temperature

Memory

microSD Slot
- SDXC

Input/Output Interface

Digital Input Channels
- 4
Digital Inputs
- +13 to +30 V for state 1
  -30 to +1 V for state 0
  Max. input current: 8 mA
Relay Channels
- 2
Contact Current Rating
- Resistive load: 1 A @ 24 VDC
Connector
- Terminal block

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2

Ethernet Software Features

Protocols
- TCP/IP
  IPv4/IPv6
  UDP
  HTTP
  RTP/RTSP
  ARP
  UPnP
  FTP
  TFTP
  NTP Client
  DNS
  QoS
  IGMP v3
  ICMP
  SNMPv1/v2c/v3
  Modbus TCP
  HTTPS
  802.1X
  NTCIP

Security Functions

Password
- User-level password protection
Filter
- IP address
Authentication
- 802.1X
Encryption
- HTTPS
  SSH

LED Interface

LED Indicators
- STAT: Indicates if system is booted up properly or not
  Power 1: Power 1 on/off
  Power 2: Power 2 on/off
  FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network
  Video: Video input signal
  PTZ: Indicates if PTZ or COM port data has been transmitted
  SD: Indicates if SD card was mounted successfully
  Network: 10 Mbps or 100 Mbps

Serial Interface

PTZ Port
- 1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps
COM Port
- 1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbps
Console Port
- 1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1)

Power Parameters

No. of Power Inputs
- 2
Input Voltage
- Redundant dual inputs
Operating Voltage
- 12 to 32 VDC, 18 to 30 VAC
Input Current
- 1 A @ 12 VDC
  0.3 A @ 32 VDC
  0.92 A @ 18 VAC
  0.56 A @ 30 VAC
Power Connector
- 2-pin terminal block

Video Interface

Video Compression
- H.264 (ISO/IEC 14496-10) or MJPEG
Video Input
- 4, BNC connector (1.0 Vpp, 75 ohm)
Video Output
- via Ethernet
Video Streams
- 2 independent H.264 or MJPEG video streams
  1 quad (4-channel images) stream
NTSC/PAL
- Auto-sensing or manual

Video Resolution and FPS (frames per second)

	NTSC		PAL
	Size	Max. FPS	Size	Max. FPS
QCIF	176 x 112	30	176 x 144	25
4CIF	704 x 480	30	704 x 576	25
CIF	352 x 240	30	352 x 288	25
VGA	640 x 480	30	640 x 480	25
QVGA	320 x 240	30	320 x 240	25
Full D1	720 x 480	30	720 x 576	25
Quad View	1440 x 960	30	1440 x 1152	25

Video Viewing
- DynaStream™ support for changing the video frame rate automatically
  CBR Pro™ for good image quality in limited bandwidth transmissions
  Adjustable image size and quality
  Timestamp and text overlay
  OSD (On Screen Display) position adjustable
  Maximum of 10 simultaneous unicast connections, 50 multicast clients
  Image tuning control: brightness, contrast, saturation, sharpness, noise reduction

Audio Interface

Audio Inputs
- 1 Line-in or MIC-in with 3.5 mm phone jack
Audio Outputs
- 1 Line-out, with 3.5 mm phone jack
Audio Format
- Mono, PCM (G.711)

Camera Software Development

Video Standards
- ONVIF Profile S

Camera PAN/TILT/ZOOM

PTZ Camera Control
- Via PTZ port or COM port
PTZ Control Functions
- Pan, tilt, zoom, focus, move speed, preset position (max. 128 positions)
PTZ Function Updates
- Driver upload supported
Protocols
- Pelco D, Pelco P, Custom Camera

Camera Alarm Software Features

Intelligent Video
- Camera tampering detection
Video Motion Detection
- 3 independently configurable areas
Scheduling
- Daily repeat timing schedule
Imaging
- JPEG snapshots for pre/trigger/post alarm images
Custom Alarms
- HTTP event servers for setting customized alarm actions
FTP Messaging
- Automatic transfer of stored images via FTP as event-triggered actions
Pre-Alarm Buffer
- 50 MB video buffer for JPEG snapshot images
Video Recording
- Event recordings stored on the SD card

Software Requirements

Memory Size
- 1 GB
Operating System
- Windows 7 or above
Browser
- Internet Explorer 9.x or above
Multimedia
- DirectX 9.0C or above

Physical Characteristics

Housing
- Metal
Dimensions
- 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
Weight
- 1130 g (2.49 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- -25 to 60°C (-13 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- 2000 m

Standards and Certifications

EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Freefall
- IEC 60068-2-31
Safety
- UL 60950-1
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6

MTBF

Time
- 827,831 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
