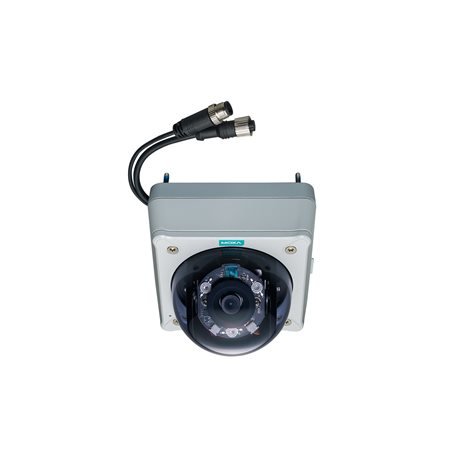

Moxa VPort P16-2MR42M

EN50155, day & night, IR, 1080P IP Camera, 4.2 mm lens, PoE, M12 connector, -25 to 55°C operating temperature

1.093,68 €

exkl. 19% USt. , (Standard)

Stk

EN50155, day & night, IR, 1080P IP Camera, 4.2 mm lens, PoE, M12 connector, -25 to 55°C operating temperature

Digital Input Channels
- 1
Digital Inputs
- +13 to +30 V for state 1
  -30 to +1 V for state 0
  Max. input current: 8 mA
Connector
- 5-pin A-coded male M12 connector with 20 cm cable

Protocols
- TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Sensor
- 1/3-in 1080P progressive scan CMOS
Lens
- f=4.2 mm, F1.6, Diagonal 82°, Horizontal 62°, Vertical 34°
Minimum Illumination
- Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
  B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
  Note: 0 lux if IR illuminator is on
Camera Angle
- Pan 350°, Tilt 65° (controlled manually)
Day & Night
- Auto/Color/BW; ICR control
Synchronization
- Internal
White Balance
- ATW/AWB
Electronic Shutter
- Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio
- Maximum 50 dB (AGC off; DNR on)
ICR Control
- Auto (light sensor control) or DI control
IR Illumination
- IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensor
DNR (digital noise reduction)
- Built-in 2D/3D DNR
WDR (wide dynamic range)
- 100 dB
AGC (auto gain control)
- 2X, 4X, 8X, 16X
Flickerless Control
- Automatic, 50 Hz, 60 Hz modes
Image Rotation
- Flip, Mirror, 90°, 180°, 270° rotation
Image Setting
- Manual tuning with saturation, sharpness, and contrast

Intelligent Video
- Camera tampering detection
Video Motion Detection
- 3 independently configurable areas
Shock Detection
- Built-in G sensor
Scheduling
- Daily repeat timing schedule
Imaging
- JPEG snapshots for pre/trigger/post alarm images
Custom Alarms
- HTTP event servers for setting customized alarm actions
Email/FTP Messaging
- Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-Alarm Buffer
- 50 MB video buffer for JPEG snapshot images
Video Recording
- Event recordings stored on the SD card

Housing
- IP66 rain and dust protection
  Metal housing, PC dome cover
  IK8 vandal resistant protection
Dimensions
- 125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in)
Weight
- 890 g (1.96 lb)
Installation
- Panel mounting

Warranty Period
- 5 years
  Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.
Details
- See www.moxa.com/warranty
