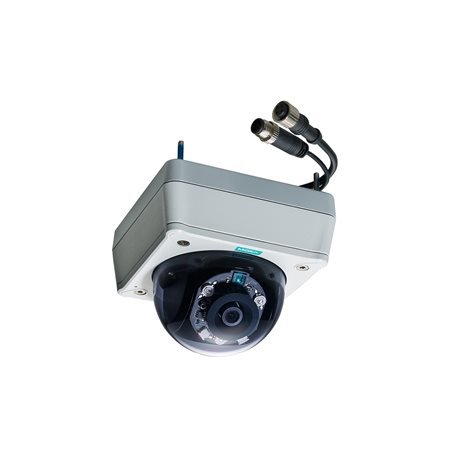

Moxa VPort P16-1MP-M12-IR-CAM80

EN50155, HD image, fixed-dome IP camera, PoE, M12 connector, IR, MIC, 1DI, 8.0mm lens, -25 to 55°C operating temperature

1.073,10 €

exkl. 19% USt. , (Standard)

Stk

EN50155, HD image, fixed-dome IP camera, PoE, M12 connector, IR, MIC, 1DI, 8.0mm lens, -25 to 55°C operating temperature

Digital Input Channels
- 1
Digital Inputs
- +13 to +30 V for state 1
  -30 to +1 V for state 0
  Max. input current: 8 mA
Connector
- 5-pin A-coded male M12 connector with 20 cm cable

Protocols
- TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Sensor
- 1/2.7-in HD progressive scan CMOS
Lens
- f=8.0 mm, F1.6, Diagonal 45°, Horizontal 40°, Vertical 22°
Minimum Illumination
- Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
  B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
  Note: 0 lux if IR illuminator is on
Camera Angle
- Pan 350°, Tilt 65° (controlled manually)
Day & Night
- Auto/Color/BW; ICR control
Synchronization
- Internal
White Balance
- ATW/AWB
Electronic Shutter
- Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio
- Maximum 50 dB (AGC off; DNR on)
ICR Control
- Auto (light sensor control) or DI control
IR Illumination
- IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensor
DNR (digital noise reduction)
- Built-in 2D/3D DNR
WDR (wide dynamic range)
- 110 dB
Flickerless Control
- Automatic, 50 Hz, 60 Hz modes
Image Rotation
- Flip, Mirror, and 180° rotation
Image Setting
- Manual tuning with saturation, sharpness, and contrast
AGC (auto gain control)
- 2X, 4X, 8X, 16X, 32X, 64X
BLC (back light compensation)
- High/Medium/Low

VPort SDK PLUS
- Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers
Video Standards
- ONVIF Profile S

Intelligent Video
- Camera tampering detection
Video Motion Detection
- 3 independently configurable areas
Scheduling
- Daily repeat timing schedule
Imaging
- JPEG snapshots for pre/trigger/post alarm images
Custom Alarms
- HTTP event servers for setting customized alarm actions
Email/FTP Messaging
- Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-Alarm Buffer
- 12 MB video buffer for JPEG snapshot images

Housing
- IP66 rain and dust protection
  Metal housing, PC dome cover
  IK10 vandal resistant protection
Dimensions
- 125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in)
Weight
- 870 g (1.92 lb)
Installation
- Panel mounting

Warranty Period
- 5 years
  Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.
Details
- See www.moxa.com/warranty
