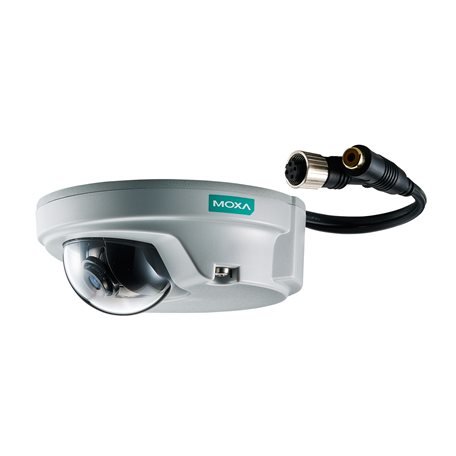

Moxa VPort P06-1MP-M12-CAM80

Moxa VPort P06-1MP-M12-CAM80

Artikelnummer: VPort P06-1MP-M12-CAM80
Kategorie: VPort P06-1MP-M12 Series
Hersteller: Moxa

EN50155, HD, compact IP camera, M12 connector, 1 audio-in, PoE, 8.0 mm lens, -25 to 55°C operating temperature

673,75 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

VPort P06-1MP-M12-CAM80

VPort P06-1MP-M12 Series

EN50155, HD, compact IP camera, M12 connector, 1 audio-in, PoE, 8.0 mm lens, -25 to 55°C operating temperature

Ethernet Interface

PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)
- 1

Ethernet Software Features

Protocols
- TCP/IP
  IPv4
  UDP
  HTTP
  RTP/RTSP
  ARP
  UPnP
  FTP
  TFTP
  NTP Client
  DNS
  QoS
  IGMP v3
  ICMP
  SNMPv1/v2c/v3
  DHCP Opt66/67
  HTTPS

Security Functions

Password
- User-level password protection
Filter
- IP address
Encryption
- HTTPS

Power Parameters

No. of Power Inputs
- 1
Source of Input Power
- PoE (IEEE 802.3af)
Input Current
- 0.12 A @ 48 VDC

Camera Characteristics

Sensor
- 1/2.7-in HD progressive scan CMOS
Lens
- f=8.0 mm, F1.6, Diagonal 45°, Horizontal 40°, Vertical 22°
Camera Angle
- Pan: ±30°, Tilt: 0° to 90° (controlled manually)
Minimum Illumination
- Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
Synchronization
- Internal
White Balance
- ATW/AWB
Electronic Shutter
- Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio
- Maximum 50 dB (AGC off; DNR on)
DNR (digital noise reduction)
- Built-in 2D/3D DNR
WDR (wide dynamic range)
- 110 dB
Flickerless Control
- Automatic, 50 Hz, 60 Hz modes
Image Rotation
- Flip, Mirror, and 180° rotation
Image Setting
- Manual tuning with saturation, sharpness, and contrast
AGC (auto gain control)
- 2X, 4X, 8X, 16X, 32X, 64X
BLC (back light compensation)
- High/Medium/Low

Video Interface

Video Compression
- H.264 (ISO/IEC 14496-10) or MJPEG
Video Output
- via Ethernet
Video Streams
- 3 independent H.264 or MJPEG video streams

Video Resolution and FPS (frames per second)

	NTSC		PAL
	Size	Max. FPS	Size	Max. FPS
QCIF	176 x 112	30	176 x 144	25
QVGA	320 x 240	30	320 x 240	25
CIF	352 x 240	30	352 x 288	25
VGA	640 x 480	30	640 x 480	25
4CIF	704 x 480	30	704 x 576	25
Full D1	720 x 480	30	720 x 576	25
SVGA	800 x 600	30	800 x 600	25
HD	1280 x 720	30	1280 x 720	25
WXGA	1280 x 800	30	1280 x 800	25
Note: Multiple streams may not support up to 30 FPS.

Video Viewing
- DynaStream™ support for changing the video frame rate automatically
  CBR Pro™ for good image quality in limited bandwidth transmissions
  3 privacy mask areas provided
  Adjustable image size and quality
  Timestamp and text overlay
  OSD (On Screen Display) position adjustable
  Maximum of 5 simultaneous unicast connections, 50 multicast clients

Audio Interface

Audio Inputs
- 1 x line-in, with RCAconnector
Audio Format
- Mono, PCM (G.711)

Camera Software Development

Video Standards
- ONVIF Profile S

Camera Alarm Software Features

Intelligent Video
- Camera tampering detection
Video Motion Detection
- 3 independently configurable areas
Scheduling
- Daily repeat timing schedule
Imaging
- JPEG snapshots for pre/trigger/post alarm images
Custom Alarms
- HTTP event servers for setting customized alarm actions
FTP Messaging
- Automatic transfer of stored images via FTP as event-triggered actions

Software Requirements

Memory Size
- 1 GB
Operating System
- Windows 7 or above
Browser
- Internet Explorer 9.x or above
Multimedia
- DirectX 9.0C or above

Physical Characteristics

Housing
- Plastic top cover, metal bottom plate
  IP66 rain and dust protection
  IK10 vandal resistant protection
  Transparent PC cover
Dimensions
- 110 x 47 mm (4.33 x 1.85 in)
Weight
- 310 g (0.68 lb)
Installation
- Panel mounting

Environmental Limits

Operating Temperature
- -25 to 55°C (-13 to 131°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Ingress Protection
- IEC 60529, IP66
Vandal Resistance
- EN 62262, IK10
Altitude
- 2000 m

Standards and Certifications

EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Signal: 2 kV
  IEC 61000-4-5 Surge: Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Freefall
- IEC 60068-2-31
Railway Fire Protection
- EN 45545-2
Safety
- UL 62368-1
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155
Railway
- EN 50155 (complies with a portion of EN 50155 specifications)

MTBF

Time
- 1,944,687 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
