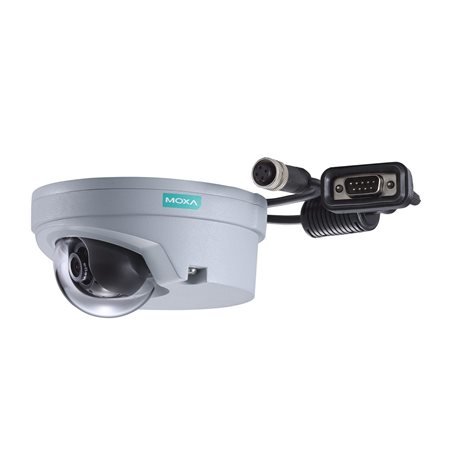

Moxa VPort 06-2L36M-T

Moxa VPort 06-2L36M-T

Artikelnummer: VPort 06-2L36M-T
Kategorie: VPort 06-2 Series
Hersteller: Moxa

EN 50155, FHD, H.264/MJPEG IP camera with M12 connector, 1 audio input, 24 VDC, 3.6 mm lens, -40 to 70°C operating temperature

950,60 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

VPort 06-2L36M-T

VPort 06-2 Series

EN 50155, FHD, H.264/MJPEG IP camera with M12 connector, 1 audio input, 24 VDC, 3.6 mm lens, -40 to 70°C operating temperature

Memory

microSD Slot
- SDXC

Input/Output Interface

Digital Input Channels
- 1
Digital Inputs
- +13 to +30 V for state 1
  -30 to +1 V for state 0
  Max. input current: 8 mA
Connector
- DB9 male

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
- 1

Ethernet Software Features

Protocols
- TCP/IP
  IPv4/IPv6
  UDP
  HTTP
  RTP/RTSP
  ARP
  UPnP
  FTP
  TFTP
  NTP Client
  DNS
  QoS
  IGMP v3
  ICMP
  SNMPv1/v2c/v3
  DHCP Opt66/67
  HTTPS
  SIP

Security Functions

Password
- User-level password protection
Filter
- IP address
Encryption
- HTTPS
  SSH

Power Parameters

No. of Power Inputs
- 1
Input Voltage
- 12/24 VDC
Input Current
- 0.86 A @ 12 VDC, 0.35 A @ 24 VDC
Power Connector
- DB9 male

Camera Characteristics

Sensor
- 1/3-in 1080P progressive scan CMOS
Lens
- f=3,6 mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39°
Minimum Illumination
- Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
Synchronization
- Internal
White Balance
- ATW/AWB
Electronic Shutter
- Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio
- Maximum 50 dB (AGC off; DNR on)
DNR (digital noise reduction)
- Built-in 2D/3D DNR
WDR (wide dynamic range)
- 100 dB
AGC (auto gain control)
- 2X, 4X, 8X, 16X
Flickerless Control
- Automatic, 50 Hz, 60 Hz modes
Image Rotation
- Flip, Mirror, 90°, 180°, 270° rotation
Image Setting
- Manual tuning with saturation, sharpness, and contrast
Camera Angle
- Pan: ±15°, Tilt: 0° to 90° (controlled manually)

Video Interface

Video Compression
- H.264 (ISO/IEC 14496-10) or MJPEG
Video Output
- via Ethernet
Video Streams
- 4 independent H.264 or MJPEG video streams

Video Resolution and FPS (frames per second)

	NTSC		PAL
	Size	Max. FPS	Size	Max. FPS
QCIF	176 x 112	30	176 x 144	25
CIF	352 x 240	30	352 x 288	25
VGA	640 x 480	30	640 x 480	25
4CIF	704 x 480	30	704 x 576	25
Full D1	720 x 480	30	720 x 576	25
SVGA	800 x 600	30	800 x 600	25
HD	1280 x 720	30	1280 x 720	25
WXGA	1280 x 800	30	1280 x 800	25
Full HD	1920 x 1080	30	1920 x 1080	30

Video Viewing
- DynaStream™ support for changing the video frame rate automatically
  CBR Pro™ for good image quality in limited bandwidth transmissions
  3 privacy mask areas provided
  Adjustable image size and quality
  Timestamp and text overlay
  OSD (On Screen Display) position adjustable
  Maximum of 10 simultaneous unicast connections, 50 multicast clients

Audio Interface

Audio Format
- Mono, PCM (G.711)
  AAC
Audio Inputs
- 1 x line-in, with DB9 maleconnector

Camera Software Development

Video Standards
- ONVIF Profile S

Camera Alarm Software Features

Intelligent Video
- Camera tampering detection
Video Motion Detection
- 3 independently configurable areas
Scheduling
- Daily repeat timing schedule
Imaging
- JPEG snapshots for pre/trigger/post alarm images
Custom Alarms
- HTTP event servers for setting customized alarm actions
FTP Messaging
- Automatic transfer of stored images via FTP as event-triggered actions
Pre-Alarm Buffer
- 50 MB video buffer for JPEG snapshot images
Video Recording
- Event recordings stored on the SD card

Software Requirements

Memory Size
- 2 GB
Operating System
- Windows 7 or above
Browser
- Internet Explorer 9.x or above
Multimedia
- DirectX 9.0C or above

Physical Characteristics

Housing
- IP66 rain and dust protection
  Metal housing, PC dome cover
  IK8 vandal resistant protection
Dimensions
- 110 x 115.5 x 61.8 mm (4.33 x 4.53 x 2.43 in)
Weight
- 620 g (1.37 lb)
Installation
- Panel mounting
Protection
- PCB conformal coating is optional and provided on request. If conformal coating is required, please contact Moxa.

Environmental Limits

Operating Temperature
- -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Ingress Protection
- IEC 60529, IP66
Vandal Resistance
- EN 62262, IK8
Altitude
- 2000 m
  Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Freefall
- IEC 60068-2-31
Railway Fire Protection
- EN 45545-2
Safety
- UL 62368-1
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155
Railway
- EN 50155 (complies with a portion of EN 50155 specifications)

MTBF

Time
- 1,063,089 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
