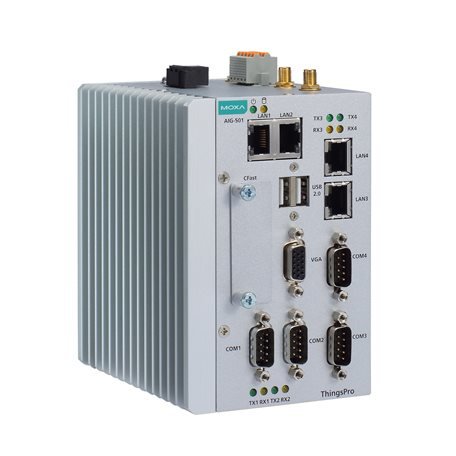

Moxa AIG-501-T-AP-AZU-LX

Artikelnummer: AIG-501-T-AP-AZU-LX
Kategorie: AIG-501 Series
Hersteller: Moxa

4-port Modbus to Azure advanced IIoT gateways with Intel Atom® quad-core 1.91 GHz processor, Azure IoT Edge, LTE Cat. 4 module for Asia-Pacific region, -40 to 70°C operating temperature

2.426,48 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

AIG-501-T-AP-AZU-LX

AIG-501 Series

4-port Modbus to Azure advanced IIoT gateways with Intel Atom® quad-core 1.91 GHz processor, Azure IoT Edge, LTE Cat. 4 module for Asia-Pacific region, -40 to 70°C operating temperature

Computer

CPU
- Intel Atom® E3845 processor (2M cache, 1.91 GHz)
Graphics Controller
- Intel® HD Graphics
DRAM
- 4 GB DDR3L
Storage Pre-installed
- 32 GB CFast eMMC
Pre-installed OS
- Linux Debian 9, Kernel 4.9
No. of Tags Supported
- 2048

Computer Interface

TPM
- TPM v2.0
USB 2.0
- USB 2.0 hosts x 2, type-A connectors
Wi-Fi Antenna Connector
- RP-SMA x 2 (AIG-501-T-AZU-LX)
Cellular Antenna Connector
- SMA x 2 (excluding AIG-501-T-AZU-LX)
GPS Antenna Connector
- SMA x 1 (excluding AIG-501-T-AZU-LX)
Expansion Slots
- mPCIe slots x 1 (AIG-501-T-AZU-LX)
Buttons
- Reboot
  Reset to factory default
Digital Input
- DIs x 4
Digital Output
- DOs x 4
Number of SIMs
- 1
SIM Format
- Mini
Video Output
- VGA x 1, 15-pin D-sub connector (female)

Ethernet Interface

Magnetic Isolation Protection
- 1.5 kV (built-in)
10/100/1000BaseT(X) Ports (RJ45 connector)
- 4

Ethernet Software Features

Industrial Protocols
- Modbus TCP Client (Master)
  Generic MQTT
  Azure IoT Device
  AWS IoT Core
  Azure IoT Edge
  OPC UA Server
  Sparkplug B Client
Configuration Options
- Web Console (HTTP/HTTPS)
  ThingsPro Proxy Utility
Time Management
- NTP Server/Client
  GPS

Serial Interface

Console Port
- 1 x 4-pin header
No. of Ports
- 4
Connector
- DB9 male
Baudrate
- 300 bps to 921.6 kbps
Data Bits
- 7, 8
Flow Control
- ADDC (automatic data direction control) for RS-485
Parity
- None
  Even
  Odd
  Space
  Mark
Stop Bits
- 1, 2

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial Protocols
- Modbus RTU/ASCII Master

Digital Inputs

Connector
- Spring-type Euroblock terminal
Sensor Type
- Dry contact
Dry Contact
- Off: open
  On: short to GND
Isolation
- None

Digital Outputs

Connector
- Spring-type Euroblock terminal
Current Rating
- 10 mA (max.) total for all channels
I/O Type
- Sink
Isolation
- None

Cellular Interface

Cellular Standards
- LTE Cat. 4
Band Options (US)
- LTE Band 2 (1900 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13 (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz) / LTE Band 71 (600 MHz)
  UMTS/HSPA Band 2 (1900 MHz) / Band 5 (850 MHz)
  Carrier Approval: Verizon, AT&T
  Note: LTE Band 71 (600 MHz). is not included in the selectable antenna support range. Please contact Moxa if you need to use this band.
Band Options (EU)
- LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz)
  UMTS/HSPA Band 1 (2100 MHz) / Band 3 (1900 MHz) / Band 8 (900 MHz)
Band Option (APAC)
- LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz)
  UMTS/HSPA Band 1 (2100 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz)

GPS Interface

Receiver Types
- GPS/GLONASS/BeiDou/Galileo/QZSS
Accuracy
- 0.8 m
Acquisition
- -147 dBm
Sensitivity
- Cold starts: -145 dBm
  Tracking: -160 dBm

LED Indicators

System
- Power x 1
  Storage x 1
LAN
- 2 per port (10/100/1000 Mbps)
Serial
- 2 per port (Tx, Rx)

Azure IoT Edge

Versions Supported
- v1.2.7
Authentication Methods
- Manual / Connection String
  DPS / TPM
  DPS / Symmetric Encryption
  DPS / X.509 Certificate
Azure Direct Methods
- Reboot
  Software Upgrade
  Remote API Invocation
Azure Module Twin
- Device Configuration
Moxa Functions
- Message Group
  Custom Payload

Sparkplug B Client

Versions Supported
- v2.2
Node Commands (NCMD)
- Next Broker
  Reboot
  Rebirth
Moxa Functions
- Store and Forward
  Custom Payload

OPC UA Server

No. of Client Connections
- 10
Security
- Sign and encrypt with policies Basic128Rsa15, Basic256, and Basic256Sha256
User Authentication and Authorization
- Username/password
Supported Profiles
- OPC UA v1.02
No. of Supported Tags
- 1024

Generic MQTT Client

Versions Supported
- v3.1.1
  v3.1
QoS Levels
- 0, 1, 2
Authentication Methods
- Username and password
Secure Transmission
- TLS 1.0
  TLS 1.1
  TLS 1.2
Native Capabilities
- Keep Alive
  Retain Message
  Clean Session
  Will and Testament
Moxa Functions
- Store and Forward
  Custom Payload
  Remote API Invocation

Azure IoT Device

Connection Protocols Supported
- MQTT
  MQTT over WebSockets
  AMQP
  AMQP over WebSockets
Authentication Methods
- Symmetric Key
  X.509 Certificate
Azure Direct Methods
- Reboot
  Software Upgrade
  Remote API Invocation

AWS IoT Core

QoS Levels
- 0,1
Authentication Methods
- X.509 Certificate
  Private Key
  Trusted Root CA
Native Capabilities
- Keep Alive
Moxa Functions
- Store and Forward
  Custom Payload
Commands Invokable Via Jobs
- Reboot
  Software Upgrade
  Remote API Invocation

Modbus RTU/ASCII

Mode
- Master
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands
- 256 per port
Max. No of Connected Devices
- 62

Modbus TCP

Mode
- Client (Master)
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Server Connections
- 64
Max. No. of Commands
- 2048

Power Parameters

Input Voltage
- 12 to 36 VDC
Power Connector
- Screw-fastened Euroblock terminal
Power Consumption
- 30 W (max.)
Input Current
- 2.5 A @ 12 VDC

Reliability

Automatic Reboot Trigger
- External WDT (watchdog timer)

Physical Characteristics

Housing
- Metal
Installation
- DIN-rail mounting (with optional kit)
  Wall mounting (with optional kit)
IP Rating
- IP20
Dimensions
- 132 x 122 x 87 mm (5.2 x 4.81 x 3.43 in)
Weight
- 1,340 g (2.95 lb)

Environmental Limits

Operating Temperature
- -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)
- -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-64
