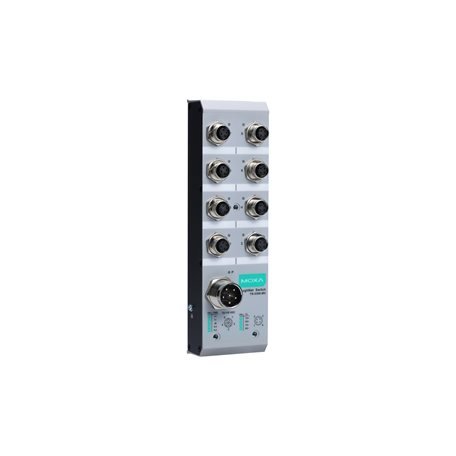

Moxa TN-5308-MV-CT

Unmanaged Ethernet switch with 8 10/100BaseT(X) M12 ports, 72 to 110 VDC, -25 to 60°C operating temperature, conformal coating

717,36 €

exkl. 19% USt. , zzgl. (Standard)

Stk

Unmanaged Ethernet switch with 8 10/100BaseT(X) M12 ports, 72 to 110 VDC, -25 to 60°C operating temperature, conformal coating

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
- 8
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3x for flow control

Freefall
- IEC 60068-2-32
EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1, EN 50155
  IEC 60068-2-14, EN 50155
  IEC 60068-2-2, EN 50155
  IEC 60068-2-30, EN 50155
International Approval
- RCM
Railway
- EN 50121-4
  EN 50155
Railway Fire Protection
- EN 45545-2
Safety
- EN 60950-1
  UL 508
Salt Spray Test
- IEC 60068-2-11, EN 50155
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155
