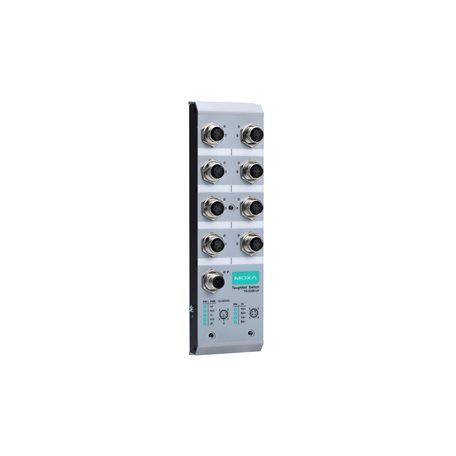

Moxa TN-5308-LV-CT-T

Artikelnummer: TN-5308-LV-CT-T
Kategorie: TN-5308 Series
Hersteller: Moxa

Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 7 to 60 VDC, -40 to 75°C operating temperature, M12 power cable, conformal coating

658,07 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TN-5308-LV-CT-T

TN-5308 Series

Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 7 to 60 VDC, -40 to 75°C operating temperature, M12 power cable, conformal coating

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
- 8
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3x for flow control

Power Parameters

Input Current
- 0.19 A @ 12 VDC, 0.10 A @ 24 VDC, 0.054 A @ 48 VDC
Input Voltage
- 12 to 48 VDC
No. of Power Inputs
- 1
Operating Voltage
- 8.4 to 60 VDC
Power Connector
- M12 A-coded male connector

Physical Characteristics

Housing
- Metal
IP Rating
- IP40
Dimensions
- 60 x 216.6 x 36.1 mm (2.36 x 8.53 x 1.42 in)
Weight
- Packaged: 485 g (1.07 lb)
Installation
- DIN-rail mounting (with optional kit)
  Wall mounting
Protection
- PCB conformal coating

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- 2000 m

Standards and Certifications

Freefall
- IEC 60068-2-32
EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1, EN 50155
  IEC 60068-2-14, EN 50155
  IEC 60068-2-2, EN 50155
  IEC 60068-2-30, EN 50155
International Approval
- RCM
Railway
- EN 50121-4
  EN 50155
Railway Fire Protection
- EN 45545-2
Safety
- EN 60950-1
  UL 508
Salt Spray Test
- IEC 60068-2-11, EN 50155
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 2,804,342 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
