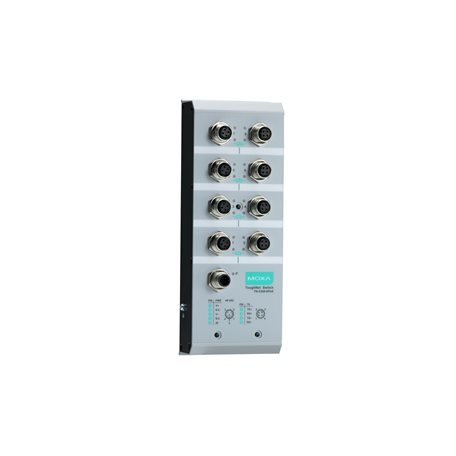

Moxa TN-5308-8PoE-48-CT

Unmanaged Ethernet switch with 8 10/100BaseT(X) PoE M12 ports, 48 VDC, -25 to 60°C operating temperature, conformal coating

Preis auf Anfrage

Unmanaged Ethernet switch with 8 10/100BaseT(X) PoE M12 ports, 48 VDC, -25 to 60°C operating temperature, conformal coating

PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)
- 8
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3x for flow control
  IEEE 802.3af for PoE

Input Current
- 2.9 A @ 48 VDC
Input Voltage
- 48 VDC
Max. PoE Power Output per Port
- 15.4 W
No. of Power Inputs
- 1
Operating Voltage
- 46 to 50 VDC This TN-5308 Series PoE model does not meet the "Variation of Voltage Supply" and "Supply Change over" requirements defined in the EN 50155 standard. Contact Moxa for more information.
Power Connector
- M12 A-coded male connector

Freefall
- IEC 60068-2-32
EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1, EN 50155
  IEC 60068-2-14, EN 50155
  IEC 60068-2-2, EN 50155
  IEC 60068-2-30, EN 50155
International Approval
- RCM
Railway
- EN 50121-4, EN 50155
Railway Fire Protection
- EN 45545-2
Safety
- EN 60950-1, UL 508
Salt Spray Test
- IEC 60068-2-11, EN 50155
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155
