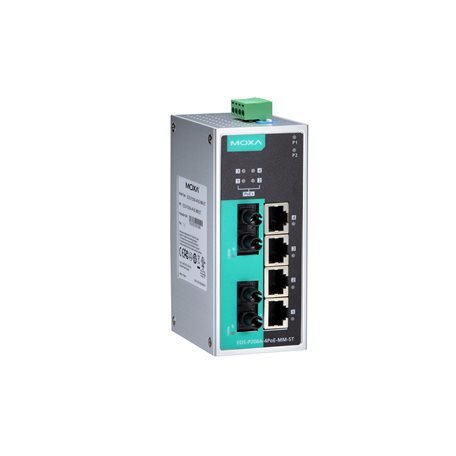

Moxa EDS-P206A-4PoE-MM-ST

Unmanaged Ethernet switch with 4 PoE ports, 2 100BaseFX multi-mode ports with ST connectorss, -10 to 60°C operating temperature

568,40 €

exkl. 19% USt. , zzgl. (Standard)

Stk

Unmanaged Ethernet switch with 4 PoE ports, 2 100BaseFX multi-mode ports with ST connectorss, -10 to 60°C operating temperature

100BaseFX Ports (multi-mode ST connector)
- 2
PoE Ports (10/100BaseT(X), RJ45 connector)
- 4
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3af/at for PoE/PoE+ output
  IEEE 802.3x for flow control
  IEEE 802.3u for 100BaseT(X)
PoE Pinout
- V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Input Current
- 5.55 A @ 24 VDC
Connection
- 1 removable 4-contact terminal block(s)
Operating Voltage
- 12 to 57 VDC
Input Voltage
- 12/24/48 VDC
  Redundant dual inputs
Power Budget
- Max. 120 W for total PD consumption
  Max. 30 W for each PoE port
Power Consumption (Max.)
- Max. 13.2 W full loading without PDs’ consumption
Reverse Polarity Protection
- Supported
Overload Current Protection
- Supported
