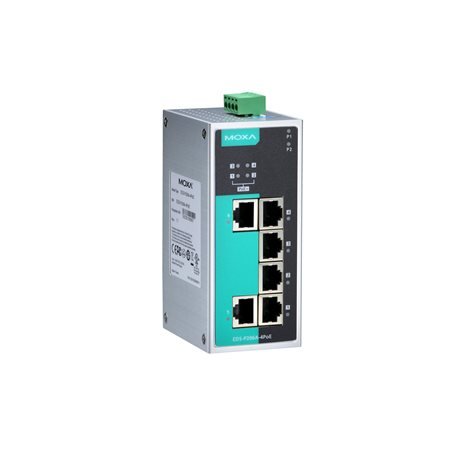

Moxa EDS-P206A-4PoE

Moxa EDS-P206A-4PoE

Artikelnummer: EDS-P206A-4PoE
Kategorie: EDS-P206A Series
Hersteller: Moxa

Unmanaged Ethernet switch with 2 10/100BaseT(X) ports,4 PoE ports, -10 to 60°C operating temperature

388,18 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-P206A-4PoE

EDS-P206A Series

Unmanaged Ethernet switch with 2 10/100BaseT(X) ports,4 PoE ports, -10 to 60°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
PoE Ports (10/100BaseT(X), RJ45 connector)
- 4
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3af/at for PoE/PoE+ output
  IEEE 802.3x for flow control
  IEEE 802.3u for 100BaseT(X)
PoE Pinout
- V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Switch Properties

Packet Buffer Size
- 768 kbits
MAC Table Size
- 2 K
Processing Type
- Store and Forward

Power Parameters

Input Current
- 5.55 A @ 24 VDC
Connection
- 1 removable 4-contact terminal block(s)
Operating Voltage
- 12 to 57 VDC
Input Voltage
- 12/24/48 VDC
  Redundant dual inputs
Power Budget
- Max. 120 W for total PD consumption
  Max. 30 W for each PoE port
Power Consumption (Max.)
- Max. 13.2 W full loading without PDs’ consumption
Reverse Polarity Protection
- Supported
Overload Current Protection
- Supported

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 50.3 x 114 x 70 mm (1.98 x 4.53 x 2.76 in)
Weight
- 375 g (0.83 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMI
- CISPR 32, FCC Part 15B Class A
EMC
- EN 55032/24
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Safety
- UL 508
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-31
Vibration
- IEC 60068-2-6

MTBF

Time
- 1,398,743 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
