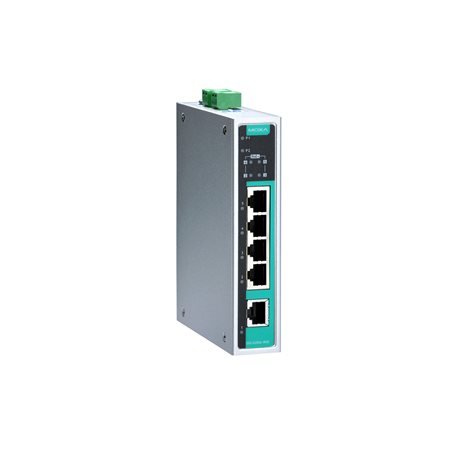

Moxa EDS-G205A-4PoE

Unmanaged Gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseT port, 0 to 60°C operating temperature

629,65 €

exkl. 19% USt. , zzgl. (Standard)

Stk

Unmanaged Gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseT port, 0 to 60°C operating temperature

10/100/1000BaseT(X) Ports (RJ45 connector)
- 5
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
PoE Ports (10/100/1000BaseT(X), RJ45 connector)
- 4
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3af/at for PoE/PoE+ output
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseX
PoE Pinout
- V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)

Connection
- 2 removable 2-contact terminal block(s)
Input Voltage
- 12/24/48 VDC
  Redundant dual inputs
Operating Voltage
- 12 to 57 VDC
Overload Current Protection
- Supported
Power Consumption (Max.)
- Max. 11.73 W full loading without PDs’ consumption
Reverse Polarity Protection
- Supported
Input Current
- 5.65 A @ 24 VDC
Power Budget
- 62 W (max.) @ 12 VDC for total PD consumption; 36 W (max.) for each PoE port
  120 W (max.) @ 24 VDC for total PD consumption; 36 W (max.) for each PoE port
  144 W (max.) @ 48 VDC for total PD consumption; 36 W (max.) for each PoE port
