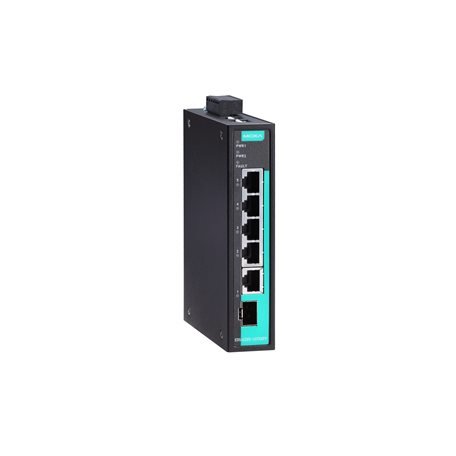

Moxa EDS-G205-1GTXSFP-T

Artikelnummer: EDS-G205-1GTXSFP-T
Kategorie: EDS-G205 Series
Hersteller: Moxa

Unmanaged full Gigabit Ethernet switch with 4 10/100/1000BaseT(X) ports, 1 combo 10/100/1000BaseT(X) or 100/1000BaseSFP port, -40 to 75°C operating temperature

313,50 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-G205-1GTXSFP-T

EDS-G205 Series

Unmanaged full Gigabit Ethernet switch with 4 10/100/1000BaseT(X) ports, 1 combo 10/100/1000BaseT(X) or 100/1000BaseSFP port, -40 to 75°C operating temperature

Input/Output Interface

Alarm Contact Channels
- 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)
- 4
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- 1
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseX
  IEEE 802.3az for Energy-Efficient Ethernet

Switch Properties

MAC Table Size
- 8 K
Packet Buffer Size
- 1 Mbits
Jumbo Frame Size
- 10 KB
Processing Type
- Store and Forward

DIP Switch Configuration

Ethernet Interface
- Broadcast storm protection
  Jumbo Frame
  IEEE 802.3az energy saving
  100/1000 SFP speed switching
  Port break alarm

Power Parameters

Connection
- 1 removable 6-contact terminal block(s)
Input Voltage
- 12/24/48 VDC
  Redundant dual inputs
Operating Voltage
- 9.6 to 60 VDC
Reverse Polarity Protection
- Supported
Input Current
- 380 mA

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)
Weight
- 290 g (0.64 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- UL 508
  EN 62368-1 (LVD)
EMC
- EN 55032/35
  EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Hazardous Locations
- ATEX
  Class I Division 2
Railway
- EN 50121-4
Vibration
- IEC 60068-2-6
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-32
Maritime
- ABS
  LR
  NK
  DNV

MTBF

Time
- 2,823,446 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
