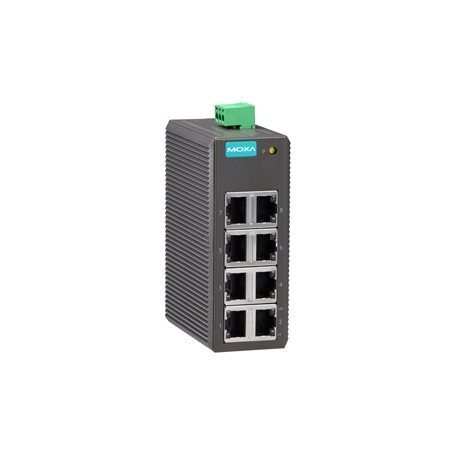

Moxa EDS-208

Artikelnummer: EDS-208
Kategorie: EDS-208 Series
Hersteller: Moxa

Entry-level unmanaged Ethernet switch with 8 10/100BaseT(X) ports, plastic housing, -10 to 60°C operating temperature

134,16 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-208

EDS-208 Series

Entry-level unmanaged Ethernet switch with 8 10/100BaseT(X) ports, plastic housing, -10 to 60°C operating temperature

Ethernet Interface

Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
10/100BaseT(X) Ports (RJ45 connector)
- 8

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Switch Properties

Processing Type
- Store and Forward
MAC Table Size
- 2 K
Packet Buffer Size
- 768 kbits

Power Parameters

Input Voltage
- 12/24/48 VDC
Operating Voltage
- 9.6 to 60 VDC
Input Current
- 0.07 A @ 24 VDC
Connection
- 1 removable 3-contact terminal block(s)
Overload Current Protection
- 2.5 A @ 24 VDC
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Plastic
IP Rating
- IP30
Dimensions
- 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in)
Weight
- 170 g (0.38 lb)
Installation
- DIN-rail mounting

Environmental Limits

Operating Temperature
- -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- UL 508
  UL 60950-1
  EN 62368-1
EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 3 V
  IEC 61000-4-8 PFMF
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
Freefall
- IEC 60068-2-32

MTBF

Time
- 3,902,526 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
