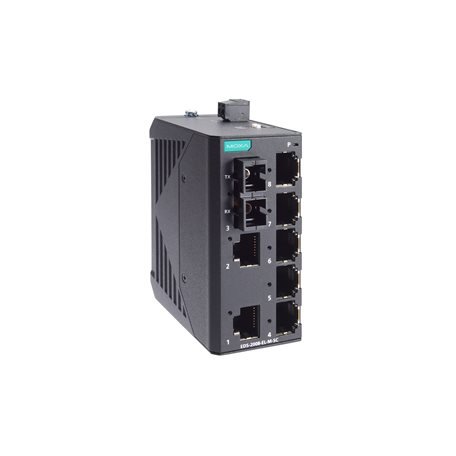

Moxa EDS-2008-EL-M-SC-T

Artikelnummer: EDS-2008-EL-M-SC-T
Kategorie: EDS-2008-EL Series
Hersteller: Moxa

Unmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with SC connectors, 12/24/48 power input, metal housing, -40 to 75°C operating temperature

260,48 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-2008-EL-M-SC-T

EDS-2008-EL Series

Unmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with SC connectors, 12/24/48 power input, metal housing, -40 to 75°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- EDS-2008-EL: 8
  EDS-2008-EL-M-ST: 7
  EDS-2008-EL-M-SC: 7
  Full/Half duplex mode
  Auto MDI/MDI-X connection
  Auto negotiation speed
100BaseFX Ports (multi-mode SC connector)
- EDS-2008-EL-M-SC: 1
100BaseFX Ports (multi-mode ST connector)
- EDS-2008-EL-M-ST: 1
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.1p for Class of Service

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Switch Properties

Processing Type
- Store and Forward
MAC Table Size
- 2 K
Packet Buffer Size
- 768 kbits

DIP Switch Configuration

Ethernet Interface
- Quality of Service (QoS) Enabling the QoS DIP switch will also enable Multicast Filtering which will block LLDP & PROFINET PTCP-Delay traffic. , Broadcast Storm Protection (BSP)

Power Parameters

Connection
- 1 removable 2-contact terminal block(s)
Input Current
- EDS-2008-EL: 0.052A @ 24 VDC
  EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.082A @ 24 VDC
Input Voltage
- 12/24/48 VDC
Operating Voltage
- 9.6 to 60 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Installation
- DIN-rail mounting
  Wall mounting (with optional kit)
Weight
- 169 g (0.37 lb)
Housing
- Metal
Dimensions
- EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
  EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) (w/ connector)
  EDS-2008-EL-M-SC: 36 x 81 x 68.9 mm (1.4 x 3.19 x 2.71 in) (w/ connector)

Environmental Limits

Ambient Relative Humidity
- 5 to 95% (non-condensing)
Operating Temperature
- EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60°C (14 to 140°F)
  EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)

Standards and Certifications

Safety
- UL 61010-2-201
  EN 62368-1
EMC
- EN 55032/35
  EN 61000-6-2/-6-4
EMI
- CISPR 22, 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
Freefall
- IEC 60068-2-32

MTBF

Time
- 3,329,688 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
