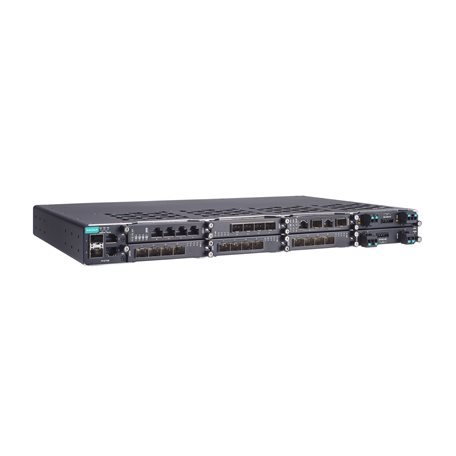

Moxa PT-G7828

Artikelnummer: PT-G7828
Kategorie: PT-G7828 Series
Hersteller: Moxa

Layer 3 modular managed Ethernet switch with 2 100/1000BaseSFP and 2 10/100/1000BaseT(X), 6 slots for Ethernet modules and 2 slots for power modules, for a maximum of 28G ports total

3.688,72 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

PT-G7828

PT-G7828 Series

Layer 3 modular managed Ethernet switch with 2 100/1000BaseSFP and 2 10/100/1000BaseT(X), 6 slots for Ethernet modules and 2 slots for power modules, for a maximum of 28G ports total

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)
- 2
100/1000BaseSFP Ports
- 2
Module
- 6
Slot Combination
- See the LM-7000H datasheet for Gigabit Ethernet module and PoE+ module information
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3z for 1000BaseX
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1X for authentication
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3x for flow control

Ethernet Software Features

Management
- IPv4/IPv6
  SNMP Inform
  SNMPv1/v2c/v3
  DHCP Server/Client
  DHCP Option 66/67/82
  BOOTP
  TFTP
  LLDP
  RARP
  HTTP
  HTTPS
  Telnet
  Flow control
  Back Pressure Flow Control
  Port Mirror
  Fiber check
  Dying Gasp
  SMTP
  Syslog
MIB
- MIB-II
  Ethernet-like MIB
  Bridge MIB
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RSTP MIB
  RMON MIB Groups 1, 2, 3, 9
Filter
- 802.1Q
  GMRP
  GVRP
  IGMP v1/v2/v3
  QinQ VLAN
Redundancy Protocols
- Link Aggregation
  MSTP
  RSTP
  STP
  Turbo Chain
  Turbo Ring v1/v2
  V-ON
  MRP
Security
- RADIUS
  TACACS+
  SSH
  Port Lock
  Broadcast storm protection
  MAB authentication
  Sticky MAC
  Access control list
Time Management
- NTP Server/Client
  SNTP
  IEEE 1588v2 PTP (hardware-based)
Power Substation
- IEC 61850 QoS
  GOOSE Check
Industrial Protocols
- EtherNet/IP
  Modbus TCP
Unicast Routing
- Static Route
  RIPV1/V2
  OSPF
Multicast Routing
- DVMRP
  PIM-DM
Routing Redundancy
- VRRP

Switch Properties

Priority Queues
- 8
Max. No. of VLANs
- 256
VLAN ID Range
- VID 1 to 4094
IGMP Groups
- 4096
MAC Table Size
- 16 K
Packet Buffer Size
- 12 Mbits
Jumbo Frame Size
- 9.6 KB

Serial Interface

Console Port
- RS-232 (RJ45)

USB Interface

Storage Port
- USB Type A

Power Parameters

Input Voltage
- With PWR-HV-P48 installed:
  110/220 VDC/VAC for the switch system
  48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices)

  With PWR-LV-P48 installed:
  24/48 VDC for the switch system
  48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices)

  With PWR-HV-NP installed:
  110/220 VDC/VAC for the switch system

  With PWR-LV-NP installed:
  24/48 VDC for the switch system
Operating Voltage
- With PWR-HV-P48 installed:
  88 to 300 VDC, 90 to 264 VAC for the switch system
  46 to 57 VDC for PoE systems

  With PWR-LV-P48 installed:
  18 to 72 VDC for the switch system
  46 to 57 VDC for PoE systems

  With PWR-HV-NP installed:
  88 to 300 VDC, 90 to 264 VAC for the switch system

  With PWR-LV-NP installed:
  18 to 72 VDC for the switch system
Input Current
- With PWR-HV-P48 installed:
  PWR input current (switch system)
  Max. 0.11 A @ 110 VDC
  Max. 0.06 A @ 220 VDC
  Max. 0.29 A @ 110 VAC
  Max. 0.18 A @ 220 VAC
  EPS input current (PoE system)
  Max. 0.53 A @ 48 VDC
  (excluding power consumption of PoE devices)

  With PWR-LV-P48 installed:
  PWR input current (switch system)
  Max. 0.53 A @ 24 VDC
  Max. 0.28 A @ 48 VDC
  EPS input current (PoE system)
  Max. 0.53 A @ 48 VDC
  (excluding power consumption of PoE devices)

  With PWR-HV-NP installed:
  PWR input current (switch system)
  Max. 0.11 A @ 110 VDC
  Max. 0.06 A @ 220 VDC
  Max. 0.29 A @ 110 VAC
  Max. 0.18 A @ 220 VAC

  With PWR-LV-NP installed:
  PWR input current (switch system)
  Max. 0.53 A @ 24 VDC
  Max. 0.28 A @ 48 VDC

Physical Characteristics

IP Rating
- IP30
Dimensions
- 443 x 44 x 280 mm (17.44 x 1.73 x 11.02 in)
Weight
- 3080 g (6.8 lb)
Installation
- 19-inch rack mounting

Environmental Limits

Operating Temperature
- -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Power Substation
- IEC 61850-3 Edition 2 Class 2 (EMC)
  IEEE 1613
Railway
- EN 50121-4
Safety
- UL 62368-1
  IEC 62368-1

MTBF

Time
- 449,542 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
