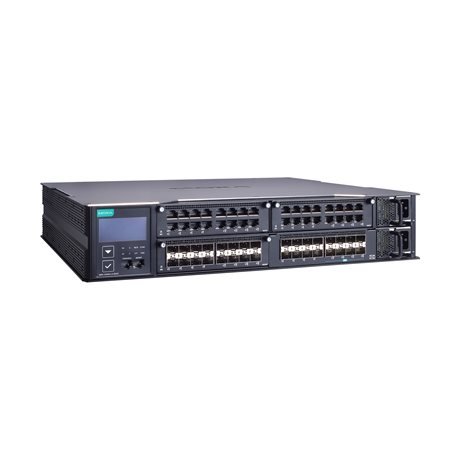

Moxa MRX-G4064-L3-8XGS

Artikelnummer: MRX-G4064-L3-8XGS
Kategorie: MRX-G4064 Series
Hersteller: Moxa

Layer 3 modular managed Gigabit Ethernet switch with 3 slots for 16-port Gigabit Ethernet modules, 8 10GbE SFP+ slots, 2 isolated power supplies (90 to 264 VAC), -10 to 60°C operating temperature

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.

Beschreibung

MRX-G4064-L3-8XGS

MRX-G4064 Series

Layer 3 modular managed Gigabit Ethernet switch with 3 slots for 16-port Gigabit Ethernet modules, 8 10GbE SFP+ slots, 2 isolated power supplies (90 to 264 VAC), -10 to 60°C operating temperature

Ethernet Interface

1000/2500/10000BaseSFP Ports
- 8
1000BaseSFP Slots
- 8
Out-of-band Management (OOBM)
- 1 x 8-pin RJ45 1GbE Ethernet port (MGMT)
Module
- There are 3 module slots on the switch. Users can select different types of modules to insert into the switch. The modules that can be selected include 16-port modules with 1000BaseT(X) or 1000BaseSFP interfaces.

  Refer to Expansion Modules in the Accessories section for a full list of supported interface modules.
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for Authentication
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3x for Flow Control
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
  IEEE 802.3ae for 10 Gigabit Ethernet
  IEEE 802.3az for Energy-Efficient Ethernet
  ITU-T G.8032 Ethernet Ring Protection Switching

Ethernet Software Features

Management
- IPv4
  Flow control
  Back Pressure Flow Control
  DHCP Client
  ARP
  RARP
  LLDP
  Linkup Delay
  SMTP
  SNMP Trap
  SNMP Inform
  SNMPv1/v2c/v3
  RMON
  TFTP
  SFTP
  HTTP
  HTTPS
  Telnet
  Syslog
  Private MIB
  Port Mirroring (SPAN, RSPAN)
Filter
- GMRP
  GVRP
  GARP
  802.1Q
  IGMP Snooping v1/v2/v3
  IGMP Querier
Redundancy Protocols
- STP
  RSTP
  Turbo Ring v2
  Ring Coupling
  Multiple Dual-Homing
  Link Aggregation
  Network Loop Protection
  MSTP
Routing Redundancy
- VRRP
Security
- Broadcast storm protection
  Rate Limit
  Access control list
  Static port lock
  Sticky MAC
  HTTPS/SSL
  SSH
  RADIUS
  TACACS+
  Login and password policy
  Secure Boot
Time Management
- SNTP
  IEEE 1588v2 PTP (hardware-based)
  NTP Server/Client
  NTP Authentication
Protocols
- TCP/IP
  UDP
  ICMP
  ARP
  RARP
  TFTP
  DNS
  NTP Client
  DHCP Client
  802.1X
  QoS
  HTTPS
  HTTP
  Telnet
  SMTP
  SNMPv1/v2c/v3
  IPv4
  RMON
  Syslog
Unicast Routing
- OSPF
  Static Route
MIB
- P-BRIDGE MIB
  Q-BRIDGE MIB
  IEEE8021-SPANNING-TREE-MIB
  IEEE8021-PAE-MIB
  IEEE8023-LAG-MIB
  LLDP-EXT-DOT1-MIB
  LLDP-EXT-DOT3-MIB
  SNMPv2-MIB
  RMON MIB Groups 1, 2, 3, 9

Switch Properties

MAC Table Size
- 32 K
Max. No. of VLANs
- 512
IGMP Groups
- 1500
Jumbo Frame Size
- 9.6 KB
Packet Buffer Size
- 6 MB
Priority Queues
- 8
VLAN ID Range
- VID 1 to 4094

USB Interface

Storage Port
- USB Type A

MicroSD Interface

Storage Port
- microSD card

Serial Interface

Console Port
- RS-232 (RJ45)

Input/Output Interface

Alarm Contact Channels
- 1 relay output with current carrying capacity of 2 A @ 30 VDC

Power Parameters

Input Voltage
- 100-240 VAC, 50-60 Hz or 230-240 VDC (for each power supply)
Operating Voltage
- 90-264 VAC, 47-63 Hz or 180-300 VDC (for each power supply)
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported
Input Current
- Max. 1.236 A @ 110 VAC
  Max. 0.675 A @ 220 VAC
  Max. 0.74 A @ 180 VDC
  Max. 0.439 A @ 300 VDC
Power Consumption (Max.)
- Max. 134.2 W @ 110 VAC
  Max. 132.3 W @ 220 VAC
  Max. 133.2 W @ 180 VDC
  Max. 131.8 W @ 300 VDC

  Note: These are the maximum power consumption ratings for the device with the maximum number of modules installed.
Power Module
- 2 x slots (2 x PWR-300-HVA-IF power modules included)

Physical Characteristics

IP Rating
- IP30
Dimensions
- 440 x 88 x 420 mm (17.32 x 3.46 x 16.54 in)
Weight
- 12 kg (26 lb)
Fan Module
- 8 x slots (8 x XM-4000-FAN-R preinstalled)
Installation
- Rack mounting
Interactive Interface
- Onboard LCM display
  Push buttons for configuration

Environmental Limits

Operating Temperature
- -10 to 60°C (-14 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- UL 62368-1
  UL 61010-2-201
  IEC 62368-1
EMC
- EN 55032/35
  EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
  IEC 61000-4-11 Voltage Dips & Interruptions
Railway
- EN 50121-4
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
Package Drop Test
- ISTA 1A
Package Vibration Test
- ISTA 1A

MTBF

Time
- 1,337,959 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
