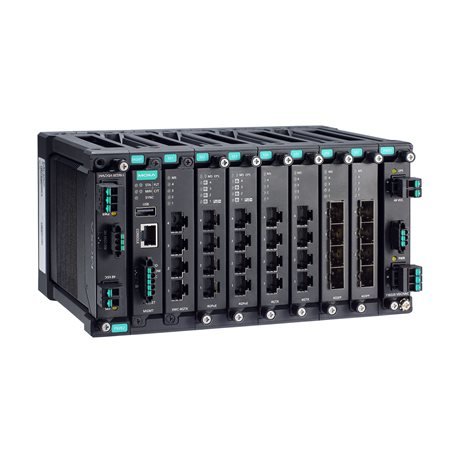

Moxa MDS-G4028-L3-T

Artikelnummer: MDS-G4028-L3-T
Kategorie: MDS-G4028-L3 Series
Hersteller: Moxa

Layer 3 full Gigabit modular managed Ethernet switch with 4 fixed Gigabit Ethernet ports, 6 slots for optional 4-port GE/FE modules, 2 slots for isolated power modules, up to 28 Gigabit Ethernet ports, -40 to 75°C operating temperature

4.243,40 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

MDS-G4028-L3-T

MDS-G4028-L3 Series

Ethernet Interface

Pre-installed Modules
- 4 embedded Gigabit ports
Module
- 6 slots for optional 4-port FE/GE modules
Slot Combination
- See the LM-7000H module series datasheet for more information.

  Note: The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements.

  LM-7000H non-PoE modules:
  Any power module

  LM-7000H PoE modules:
  PWR-HV-P48, PWR-LV-P48 only
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3z for 1000BaseX
  IEEE 802.3x for flow control
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1X for authentication
  IEEE 802.3af/at for PoE/PoE+ output

Ethernet Software Features

Management
- IPv4
  Flow control
  Back Pressure Flow Control
  ARP
  DHCP Relay Agent (Option 82)
  Fiber check
  Port Mirroring (SPAN, RSPAN)
  RARP
  LLDP
  Linkup Delay
  SMTP
  SNMP Trap
  SNMP Inform
  SNMPv1/v2c/v3
  RMON
  TFTP
  SFTP
  HTTP
  HTTPS
  Telnet
  Syslog
  Private MIB
  Loopback interface
Filter
- GMRP
  GVRP
  GARP
  802.1Q VLAN
  IGMP Snooping v1/v2/v3
  IGMP Querier
Redundancy Protocols
- STP
  RSTP
  Turbo Ring v2
  Turbo Chain
  Ring Coupling
  MRP
  MSTP
  Network Loop Protection
  Dual-Homing
  Link Aggregation
Routing Redundancy
- VRRP
Security
- Access control list
  Broadcast storm protection
  DHCP Snooping
  Dynamic ARP Inspection
  IP Source Guard
  Rate Limit
  Trust access control
  Static Port Lock
  MAC authentication bypass
  MAC Sticky
  HTTPS/SSL
  SSH
  RADIUS
  TACACS+
  Login and Password Policy
Time Management
- SNTP
  NTP Server/Client
  NTP Authentication
Protocols
- IPv4
  TCP/IP
  UDP
  ICMP
  ARP
  RARP
  TFTP
  DNS
  NTP Client
  802.1X
  QoS
  EtherNet/IP
  HTTPS
  HTTP
  Modbus TCP
  Telnet
  SMTP
  SNMPv1/v2c/v3
  RMON
  Syslog
Unicast Routing
- OSPF
  Static Route
MIB
- P-BRIDGE MIB
  Q-BRIDGE MIB
  IEEE8021-SPANNING-TREE-MIB
  IEEE8021-PAE-MIB
  IEEE8023-LAG-MIB
  LLDP-EXT-DOT1-MIB
  LLDP-EXT-DOT3-MIB
  SNMPv2-MIB
  RMON MIB Groups 1, 2, 3, 9
Power Substation
- MMS

Switch Properties

Jumbo Frame Size
- 9.216 KB
MAC Table Size
- 16 K
Max. No. of VLANs
- 256
VLAN ID Range
- VID 1 to 4094
IGMP Groups
- 1024
Priority Queues
- 8
Packet Buffer Size
- 12 Mbits

Serial Interface

Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Interface

USB Connector
- USB Type A (Reserved)

Input/Output Interface

Digital Input Channels
- 1 (On MGMT Module)
Digital Inputs
- +13 to +30 V for state 1
  -30 to +3 V for state 0
  Max. input current: 8 mA
Alarm Contact Channels
- 3 (On MGMT, PWR1, PWR2 Module)
  Relay output with current carrying capacity of 2 A @ 30 VDC

Power Parameters

Input Voltage
- With PWR-HV-P48 installed:
  110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC

  With PWR-LV-P48 installed:
  24/48 VDC, PoE: 48 VDC

  With PWR-HV-NP installed:
  110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz

  With PWR-LV-NP installed:
  24/48 VDC
Operating Voltage
- With PWR-HV-P48 installed:
  88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC

  With PWR-LV-P48 installed:
  18 to 72 VDC (24/48 VDC for hazardous location), PoE: 46 to 57 VDC (48 VDC for hazardous location)

  With PWR-HV-NP installed:
  88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz

  With PWR-LV-NP installed:
  18 to 72 VDC
Input Current
- With PWR-HV-P48/PWR-HV-NP installed:
  Max. 0.30 A @ 110 VDC
  Max. 0.15 A @ 220 VDC
  Max. 0.60 A @ 110 VAC
  Max. 0.40 A @ 220 VAC

  With PWR-LV-P48/PWR-LV-NP installed:
  Max. 1.5 A @ 24 VDC
  Max. 0.75 A @ 48 VDC

  EPS (PoE models only):
  Max. 8.2 A @ 48 VDC

  Note: These are the input current ratings for the device with the maximum number of modules installed.
Power Consumption (Max.)
- With PWR-HV-P48/PWR-HV-NP installed:
  Max. 33.0 W @ 110 VDC
  Max. 34.0 W @ 220 VDC
  Max. 35.8 W @ 110 VAC
  Max. 38.0 W @ 220 VAC

  With PWR-LV-P48/PWR-LV-NP installed:
  Max. 36.0 W @ 24 VDC
  Max. 36.0 W @ 48 VDC

  Note: These are the maximum power consumption ratings for the device with the maximum number of modules installed.
Max. PoE Power Output per Port
- 36 W
Total PoE Power Budget
- Max. 360 W (with one power supply) for total PD consumption at 48 VDC input for PoE systems

  Max. 360 W (with one power supply) for total PD consumption at 53 to 57 VDC input for PoE+ systems

  Max. 720 W (with two power supplies) for total PD consumption at 48 VDC input for PoE systems

  Max. 720 W (with two power supplies) for total PD consumption at 53 to 57 VDC input for PoE+ systems
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

IP Rating
- IP40
Dimensions
- 218 x 115 x 163.25 mm (8.59 x 4.53 x 6.44 in)
Weight
- 2840 g (6.27 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)
  Rack mounting (with optional kit)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- EN 62368-1
  IEC 62368-1
  UL 62368-1
  IEC 60950-1
EMC
- EN 55032/35
  EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
  IEC 61000-4-11: Voltage Dips and Voltage Interruptions
Railway
- EN 50121-4
Traffic Control
- NEMA TS2
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-31
Vibration
- IEC 60068-2-6
Hazardous Locations
- Class I Division 2
  ATEX
Power Substation
- IEEE 1613
  IEC 61850-3

MTBF

Time
- 966,801 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
