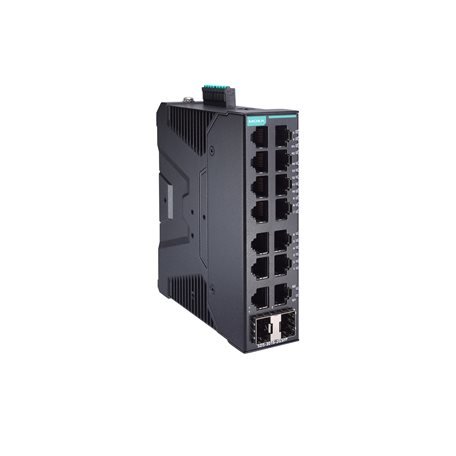

Moxa SDS-3016-2GSFP-T

Artikelnummer: SDS-3016-2GSFP-T
Kategorie: SDS-3016 Series
Hersteller: Moxa

Compact industrial smart Ethernet switch with 14 10/100BaseT(X) ports, 2 100/1000BaseSFP ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperature

986,86 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

SDS-3016-2GSFP-T

SDS-3016 Series

Compact industrial smart Ethernet switch with 14 10/100BaseT(X) ports, 2 100/1000BaseSFP ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperature

Input/Output Interface

Alarm Contact Channels
- 1
  Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons
- Reset button
Digital Input Channels
- 1
Digital Inputs
- +13 to +30 V for state 1
  -30 to +3 V for state 0
  Max. input current: 8 mA

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 14
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
10/100/1000BaseT(X) Ports (RJ45 connector)
- 2 (SDS-3016-2GTX Series)
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
100/1000BaseSFP Ports
- 2 (SDS-3016-2GSFP Series)
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3z for 1000BaseX
  IEEE 802.3x for flow control
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1p for Class of Service

Ethernet Software Features

Industrial Protocols
- EtherNet/IP
  Modbus TCP
  PROFINET IO Device
Management
- Back Pressure Flow Control
  DHCP Client
  Flow control
  IPv4/IPv6
  LLDP
  Port Mirror
  SNMP Inform
  SNMPv1/v2c/v3
  Syslog
MIB
- RFC1213
  Ethernet-like MIB
  IF MIB
  LLDP MIB
  Bridge MIB
  Q-BRIDGE MIB
Redundancy Protocols
- RSTP
  STP
  MRP
Security
- Broadcast storm protection
  HTTPS/SSL
  SNMPv3
  Port Lock
Time Management
- NTP Server/Client
  SNTP
Filter
- 802.1Q VLAN

Rotary Switch Configuration

Industrial Profile

Indicator	Mode
0	Modbus TCP profile (Default)
1	PROFINET profile enabled
2	PROFINET profile and DHCP client enabled
3	EtherNet/IP profile enabled
4	EtherNet/IP profile and DHCP client enabled
Others	Reserved (has the same behavior as Indicator 0)

Switch Properties

MAC Table Size
- 8 K
Max. No. of VLANs
- 8
VLAN ID Range
- VID 1 to 4094
Packet Buffer Size
- 3 Mbits

USB Interface

Storage Port
- USB Type A

LED Interface

LED Indicators
- PWR1, PWR2, STATE, FAULT, 10/100M, 1000M (TP Port)

Power Parameters

Connection
- 2 removable 4-contact terminal block(s)
Input Voltage
- 12/24/48/-48 VDC
  Redundant dual inputs
Operating Voltage
- 9.6 to 60 VDC
Input Current
- 12-48 VDC, 0.99 A (max.)
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Metal
IP Rating
- IP40
Dimensions
- 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)
Weight
- 590 g (1.3 lb)
Installation
- DIN-rail mounting

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
  EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF: 30 A/m
Safety
- EN 62368-1
  UL 61010-2-201
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-32
Vibration
- IEC 60068-2-6

MTBF

Time
- 1,109,179 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
