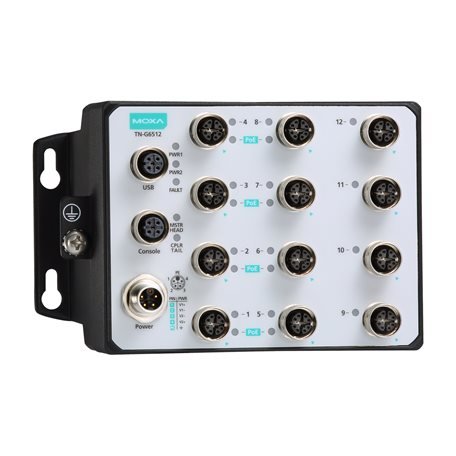

Moxa TN-G6512-8GPoE-WV-T

Artikelnummer: TN-G6512-8GPoE-WV-T
Kategorie: TN-G6500 Series
Hersteller: Moxa

Layer 2 Managed Ethernet switch, 8 10/100/1000BaseT(X) ports with 802.3at PoE+ and 4 10/100/1000BaseT(X) M12 connectors, 24 to 110 VDC power input, -40 to 70°C operating temperature

4.540,34 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TN-G6512-8GPoE-WV-T

TN-G6500 Series

Layer 2 Managed Ethernet switch, 8 10/100/1000BaseT(X) ports with 802.3at PoE+ and 4 10/100/1000BaseT(X) M12 connectors, 24 to 110 VDC power input, -40 to 70°C operating temperature

Ethernet Interface

10/100/1000BaseT(X) Ports (M12 A-coded 8-pin female connector)
- 4
PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)
- 8
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3af/at for PoE/PoE+ output
  IEEE 802.3x for flow control
  IEEE 802.3u for 100BaseT(X)

Ethernet Software Features

Broadcast Forwarding
- Broadcast forwarding
Configuration Options
- Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
Filter
- 802.1Q
  GMRP
  GVRP
  Port-based VLAN
  Static Multicast
  IGMP Querier
  DHCP Filter
  IGMP Snooping v1/v2/v3
Industrial Protocols
- SNMPv1/v2c/v3
Management
- Account Management
  Back Pressure Flow Control
  Flow control
  HTTP
  IPv4/IPv6
  LLDP
  Port Mirror
  QoS/CoS/ToS
  RARP
  RMON
  SMTP
  SNMP Inform
  Syslog
  Telnet
  SNMP Trap
  DHCP Client (options 1/3/50/51/53/54/55/57/66/67)
  DHCP Server (options 1/3/12/15/42/50/55)
  DNS Server
  Port-based DHCP Server
  DHCP option 82 (relay agent)
  Loop Protection
  ICMP
MIB
- Bridge MIB
  Ethernet-like MIB
  MIB-II
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB
Redundancy Protocols
- Static Port Trunk
  MSTP
  RSTP
  Turbo Ring v2
  STP
  LACP
  Turbo Chain
  Turbo Ring with DRC
Security
- Trust access control
  TACACS+
  Broadcast storm protection
  HTTPS/SSL
  Local Account Accessibility
  Port Lock
  RADIUS
  Rate Limit
  Access control list
  SSH
Time Management
- NTP Server/Client
  SNTP

Switch Properties

IGMP Groups
- 256
Max. No. of VLANs
- 256
Priority Queues
- 4
VLAN ID Range
- VID 1 to 4094
Jumbo Frame Size
- 9.216 KB

LED Interface

LED Indicators
- PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE

Serial Interface

Console Port
- RS-232 (M12 B-coded 5-pin female connector)

Power Parameters

Input Voltage
- 24/36/48/72/96/110 VDC
No. of Power Inputs
- 2
Operating Voltage
- 16.8 to 137.5 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported
Total PoE Power Budget
- 96 W
Input Current
- 5.8 A @ 24 VDC
Power Connector
- M12 K-coded 5-pin male connector

Physical Characteristics

Housing
- Metal
IP Rating
- IP67
Dimensions
- 159 x 97 x 100 mm (6.26 x 3.82 x 3.94 in)
Weight
- 1,750 g (3.86 lb)
Installation
- Wall mounting

Environmental Limits

Operating Temperature
- -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- 2000 m

Standards and Certifications

EMC
- EN 55032/35
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 6 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Freefall
- IEC 60068-2-31
Radio Frequency
- FCC
Railway
- EN 50121-4
  EN 50155
  IEC 60571
Railway Fire Protection
- EN 45545-2
Safety
- IEC 62368-1
  UL 62368-1
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 478,246 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
