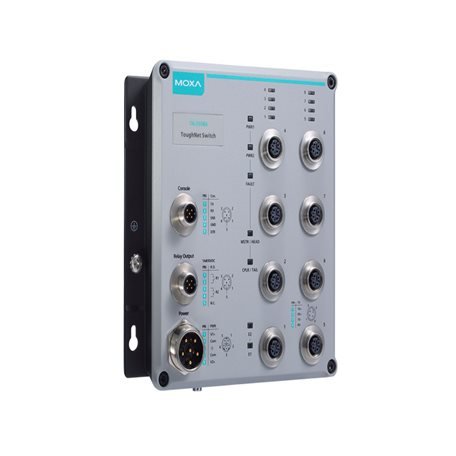

Moxa TN-5508A-WV-T

Moxa TN-5508A-WV-T

Artikelnummer: TN-5508A-WV-T
Kategorie: TN-5500A Series
Hersteller: Moxa

Managed Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, dual redundant power inputs (24-110 VDC), -40 to 75°C operating temperature

1.853,18 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TN-5508A-WV-T

TN-5500A Series

Managed Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, dual redundant power inputs (24-110 VDC), -40 to 75°C operating temperature

Input/Output Interface

Alarm Contact Channels
- 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
- 8
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control

Ethernet Software Features

Broadcast Forwarding
- Broadcast forwarding
Configuration Options
- Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
Filter
- 802.1Q
  GMRP
  GVRP
  IGMP Snooping v1/v2/v3
  IGMP Querier
  Port-based VLAN
  Static Multicast
Management
- Account Management
  Back Pressure Flow Control
  DHCP Client (options 1/3/50/51/53/54/55/57/66/67)
  DHCP option 82 (relay agent)
  DHCP Server (options 1/3/12/15/42/50/55)
  Flow control
  HTTP
  ICMP
  IPv4/IPv6
  LLDP
  Loop Protection
  Port-based DHCP Server
  Port Mirror
  QoS/CoS/ToS
  RARP
  RMON
  SMTP
  SNMP Inform
  SNMP Trap
  SNMPv1/v2c/v3
  Syslog
  Telnet
MIB
- Bridge MIB
  Ethernet-like MIB
  MIB-II
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB
Redundancy Protocols
- LACP
  MSTP
  RSTP
  Static Port Trunk
  STP
  Turbo Chain
  Turbo Ring v2
  Turbo Ring with DRC
Security
- Broadcast storm protection
  HTTPS/SSL
  Local Account Accessibility
  TACACS+
  Port Lock
  RADIUS
  Rate Limit
  SSH
Time Management
- NTP Server/Client
  SNTP

Switch Properties

IGMP Groups
- 256
Max. No. of VLANs
- 64
VLAN ID Range
- VID 1 to 4094

LED Interface

LED Indicators
- PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE

Serial Interface

Console Port
- M12 A-coded male connector

Power Parameters

Input Current
- 24-110 VDC, 0.5A max.
Input Voltage
- Redundant dual inputs
  24/36/48/72/96/110 VDC
No. of Power Inputs
- 2
Operating Voltage
- 16.8 to 137.5 VDC
Overload Current Protection
- Supported
Power Connector
- M23 connector
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Metal
IP Rating
- IP54
Dimensions
- 185 x 176.2 x 76 mm (7.28 x 6.9 x 2.99 in)
Weight
- 1,610 g (3.54 lb)
Installation
- DIN-rail mounting (optional)
  Wall mounting

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- 2000 m

Standards and Certifications

EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Freefall
- IEC 60068-2-31
Radio Frequency
- FCC
Railway
- EN 50121-4
  EN 50155
Railway Fire Protection
- EN 45545-2
Safety
- EN 62368-1
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155
EMC
- EN 55032/35

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 939,026 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
