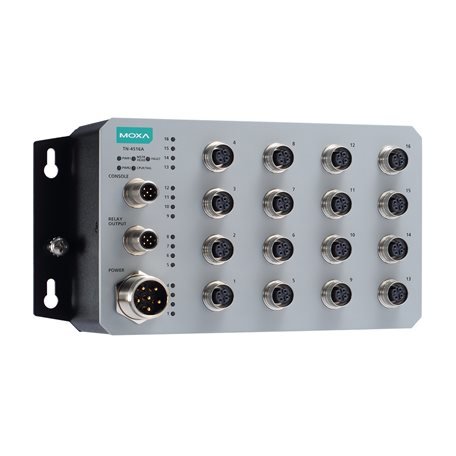

Moxa TN-4516A-WV-T

Artikelnummer: TN-4516A-WV-T
Kategorie: TN-4500A Series
Hersteller: Moxa

Layer 2 managed Ethernet switch with 16 10/100BaseT(X) ports with M12 connector, 1 (dual input) 24 to 110 VDC power supply, -40 to 70°C operating temperature

2.649,92 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TN-4516A-WV-T

TN-4500A Series

Layer 2 managed Ethernet switch with 16 10/100BaseT(X) ports with M12 connector, 1 (dual input) 24 to 110 VDC power supply, -40 to 70°C operating temperature

Input/Output Interface

Alarm Contact Channels
- 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
- 16

Ethernet Software Features

Broadcast Forwarding
- Broadcast forwarding
Configuration Options
- Command Line Interface (CLI) through Serial/Telnet/SSH
  Web Console (HTTP/HTTPS)
  Windows Utility
Filter
- 802.1Q VLAN
  GMRP
  GVRP
  IGMP Snooping v1/v2/v3
  IGMP Querier
  Port-based VLAN
  Static Multicast
Management
- Back Pressure Flow Control
  Flow control
  DHCP Client (options 1/3/50/51/53/54/55/57/66/67)
  DHCP Server (options 1/3/12/15/42/50/55)
  DHCP option 82 (relay agent)
  Port-based DHCP Server
  HTTP
  IPv4/IPv6
  LLDP
  Port Mirror
  QoS/CoS/ToS
  RARP
  RMON
  SMTP
  SNMP Inform
  SNMP Trap
  SNMPv1/v2c/v3
  Syslog
  Telnet
  Account Management
  DNS Server
  Loop Protection
MIB
- Bridge MIB
  Ethernet-like MIB
  MIB-II
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB
Redundancy Protocols
- LACP
  Static Port Trunk
  MSTP
  RSTP
  STP
  Turbo Chain
  Turbo Ring v2
  Turbo Ring with DRC
Security
- Access control list
  Trust access control
  Broadcast storm protection
  TACACS+
  RADIUS
  HTTPS/SSL
  SSH
  Rate Limit
Time Management
- NTP Server/Client
  SNTP Server/Client

Switch Properties

IGMP Groups
- 256
Max. No. of VLANs
- 64
VLAN ID Range
- VID 1 to 4094
Jumbo Frame Size
- 9.712 KB

LED Interface

LED Indicators
- PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports

Serial Interface

Console Port
- M12 A-coded male connector

Power Parameters

Input Current
- 0.33 A @ 24 VDC
Input Voltage
- 24/36/48/72/96/110 VDC
No. of Power Inputs
- 2
Power Connector
- M23 connector
  M12 K-coded connector (optional)
Operating Voltage
- 16.8 to 137.5 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Dimensions
- TN-4516A Models: 229.6 x 132 x 122.3 mm (9.04 x 5.20 x 4.81 in)
  TN-4524A/4528A Models: 347.8 x 132 x 122.3 mm (13.70 x 5.20 x 4.81 in)
Housing
- Metal
IP Rating
- IP42
Weight
- 1,248 g (2.75 lb)
Installation
- Wall mounting

Environmental Limits

Operating Temperature
- -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- 3000 m

Standards and Certifications

EMC
- EN 55032/35
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Freefall
- IEC 60068-2-31
Radio Frequency
- FCC
Railway
- EN 50121-4
  EN 50155
  IEC 60571
Railway Fire Protection
- EN 45545-2
Safety
- UL 62368-1
  IEC 62368-1
  EN 62368-1
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- TN-4516A-4GTX Models: 701,644 hrs
  TN-4516A-4GTXBP Models: 676,157 hrs
  TN-4516A-12PoE-4GPoE Models: 459,971 hrs
  TN-4516A-12PoE-2GPoE-2GTXBP Models: 427,322 hrs
  TN-4516A-12PoE-2GPoE-2GODC Models: 421,432 hrs
  TN-4524A-16PoE Models: 429,402 hrs
  TN-4528A-16PoE-4GPoE Models: 393,894 hrs
  TN-4528A-16PoE-2GPoE-2GTXBP Models: 392,746 hrs
  TN-4528A-16PoE-2GPoE-2GODC Models: 387,767 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
