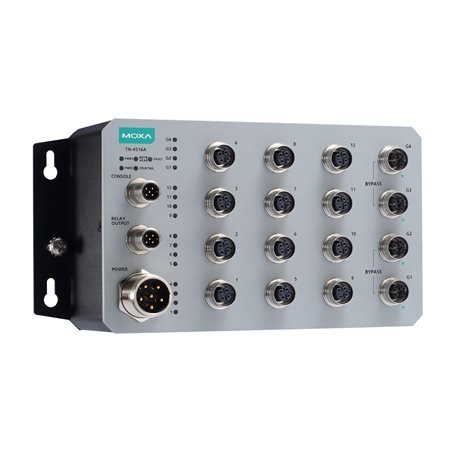

Moxa TN-4516A-4GTXBP-WV-T

Artikelnummer: TN-4516A-4GTXBP-WV-T
Kategorie: TN-4500A Series
Hersteller: Moxa

Managed Ethernet switch with 12 10/100BaseT(X) ports, and 4 10/100/1000BaseT(X) ports with M12 connectors, 4 Gigabit Ethernet ports with bypass relay function support, dual redundant power inputs (24-110 VDC), -40 to 75°C operating temperature

3.049,76 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TN-4516A-4GTXBP-WV-T

TN-4500A Series

Input/Output Interface

Alarm Contact Channels
- 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
- 12
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)
- 4
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

Broadcast Forwarding
- Broadcast forwarding
Configuration Options
- Command Line Interface (CLI) through Serial/Telnet/SSH
  Web Console (HTTP/HTTPS)
  Windows Utility
Filter
- 802.1Q VLAN
  GMRP
  GVRP
  IGMP Snooping v1/v2/v3
  IGMP Querier
  Port-based VLAN
  Static Multicast
Management
- Back Pressure Flow Control
  Flow control
  DHCP Client (options 1/3/50/51/53/54/55/57/66/67)
  DHCP Server (options 1/3/12/15/42/50/55)
  DHCP option 82 (relay agent)
  Port-based DHCP Server
  HTTP
  IPv4/IPv6
  LLDP
  Port Mirror
  QoS/CoS/ToS
  RARP
  RMON
  SMTP
  SNMP Inform
  SNMP Trap
  SNMPv1/v2c/v3
  Syslog
  Telnet
  Account Management
  DNS Server
  Loop Protection
MIB
- Bridge MIB
  Ethernet-like MIB
  MIB-II
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB
Redundancy Protocols
- LACP
  Static Port Trunk
  MSTP
  RSTP
  STP
  Turbo Chain
  Turbo Ring v2
  Turbo Ring with DRC
Security
- Access control list
  Trust access control
  Broadcast storm protection
  TACACS+
  RADIUS
  HTTPS/SSL
  SSH
  Rate Limit
Time Management
- NTP Server/Client
  SNTP Server/Client

Switch Properties

IGMP Groups
- 256
Max. No. of VLANs
- 64
VLAN ID Range
- VID 1 to 4094
Jumbo Frame Size
- 9.712 KB

LED Interface

LED Indicators
- PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports

Serial Interface

Console Port
- M12 A-coded male connector

Power Parameters

Input Current
- 0.62 A @ 24 VDC
Input Voltage
- 24/36/48/72/96/110 VDC
No. of Power Inputs
- 2
Power Connector
- M23 connector
  M12 K-coded connector (optional)
Operating Voltage
- 16.8 to 137.5 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Dimensions
- TN-4516A Models: 229.6 x 132 x 122.3 mm (9.04 x 5.20 x 4.81 in)
  TN-4524A/4528A Models: 347.8 x 132 x 122.3 mm (13.70 x 5.20 x 4.81 in)
Housing
- Metal
IP Rating
- IP42
Weight
- 1,248 g (2.75 lb)
Installation
- Wall mounting

Environmental Limits

Operating Temperature
- -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- 3000 m

Standards and Certifications

EMC
- EN 55032/35
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Freefall
- IEC 60068-2-31
Radio Frequency
- FCC
Railway
- EN 50121-4
  EN 50155
  IEC 60571
Railway Fire Protection
- EN 45545-2
Safety
- UL 62368-1
  IEC 62368-1
  EN 62368-1
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- TN-4516A-4GTX Models: 701,644 hrs
  TN-4516A-4GTXBP Models: 676,157 hrs
  TN-4516A-12PoE-4GPoE Models: 459,971 hrs
  TN-4516A-12PoE-2GPoE-2GTXBP Models: 427,322 hrs
  TN-4516A-12PoE-2GPoE-2GODC Models: 421,432 hrs
  TN-4524A-16PoE Models: 429,402 hrs
  TN-4528A-16PoE-4GPoE Models: 393,894 hrs
  TN-4528A-16PoE-2GPoE-2GTXBP Models: 392,746 hrs
  TN-4528A-16PoE-2GPoE-2GODC Models: 387,767 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
