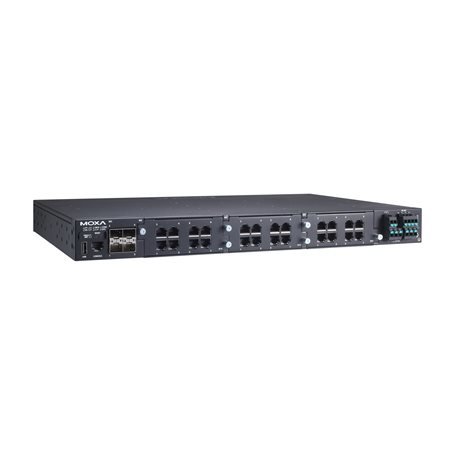

Moxa RKS-G4028-4GS-2LV-T

Artikelnummer: RKS-G4028-4GS-2LV-T
Kategorie: RKS-G4028 Series
Hersteller: Moxa

Modular managed Ethernet switch with 4 100/1000BaseSFP ports, 3 slots for Ethernet modules, 2 isolated power supplies (24/48 VDC), -40 to 75°C operating temperature

3.997,42 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

RKS-G4028-4GS-2LV-T

RKS-G4028 Series

Modular managed Ethernet switch with 4 100/1000BaseSFP ports, 3 slots for Ethernet modules, 2 isolated power supplies (24/48 VDC), -40 to 75°C operating temperature

Input/Output Interface

Alarm Contact Channels
- 1 relay output with current carrying capacity of 2 A @ 24 VDC
Buttons
- Reset button

Ethernet Interface

100/1000BaseSFP Slots
- 4
Module
- There are 3 module slots on the switch. Users can select different types of modules to insert into the switch. The modules that can be selected include 8-port/6-port modules with 10/100/1000BaseT(X), 10/100BaseT(X), 100/1000BaseSFP, or 100BaseFX (SC/ST connector) interfaces.

  Refer to Expansion Modules in the Accessories section for a full list of supported interface modules.
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

Management
- IPv4/IPv6
  Note: IPv6 is available for L2 models only.
  Flow control
  Back Pressure Flow Control
  DHCP Server/Client
  Note: DHCP Server/Client is available for L2 models only.
  ARP
  RARP
  LLDP
  Linkup Delay
  SMTP
  SNMP Trap
  SNMP Inform
  SNMPv1/v2c/v3
  RMON
  TFTP
  SFTP
  HTTP
  HTTPS
  Telnet
  Syslog
  Private MIB
  Fiber check
  DHCP Relay Agent (Option 82)
  Port Mirroring (SPAN, RSPAN)
Filter
- GMRP
  GVRP
  GARP
  802.1Q
  IGMP Snooping v1/v2/v3
  IGMP Querier
Redundancy Protocols
- STP
  RSTP
  Turbo Ring v2
  Turbo Chain
  Ring Coupling
  Dual-Homing
  MRP
  Link Aggregation
  Network Loop Protection
  MSTP
Security
- Broadcast storm protection
  Rate Limit
  Access control list
  Static port lock
  Sticky MAC
  HTTPS/SSL
  SSH
  RADIUS
  TACACS+
  Login and password policy
  Secure boot
  MAC authentication bypass
  Trust access control
  Dynamic ARP Inspection
  DHCP Snooping
  IP Source Guard
Time Management
- SNTP
  IEEE 1588v2 PTP (hardware-based)
  Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017

  NTP Server/Client
  NTP Authentication
Protocols
- IPv4/IPv6
  Note: IPv6 is available for L2 models only.
  TCP/IP
  UDP
  ICMP
  ARP
  RARP
  TFTP
  DNS
  NTP Client
  DHCP Server
  Note: DHCP Server is available for L2 models only.
  DHCP Client
  Note: DHCP Client is available for L2 models only.
  802.1X
  QoS
  HTTPS
  HTTP
  Telnet
  SMTP
  SNMPv1/v2c/v3
  RMON
  Syslog
Industrial Protocols
- EtherNet/IP
  Modbus TCP
MIB
- P-BRIDGE MIB
  Q-BRIDGE MIB
  IEEE8021-SPANNING-TREE-MIB
  IEEE8021-PAE-MIB
  IEEE8023-LAG-MIB
  LLDP-EXT-DOT1-MIB
  LLDP-EXT-DOT3-MIB
  SNMPv2-MIB
  RMON MIB Groups 1, 2, 3, 9
Power Substation
- MMS
  1588 PTP Power Profile IEC 61850-9-3
  1588 PTP Power Profile C37.238-2017

Switch Properties

IGMP Groups
- 1024
Jumbo Frame Size
- 9.216 KB
MAC Table Size
- 16 K
Max. No. of VLANs
- 256
Packet Buffer Size
- 1.5 MB
Priority Queues
- 8
VLAN ID Range
- VID 1 to 4094

USB Interface

Storage Port
- USB Type A

MicroSD Interface

Storage Port
- microSD card

LED Interface

LED Indicators
- PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC, EPS

Serial Interface

Console Port
- RS-232 (RJ45)

Power Parameters

Total PoE Power Budget
- 300 W
Max. PoE Power Output per Port
- IEEE 802.3af: 15.4 W
  IEEE 802.3at: 30 W
  IEEE 802.3bt: 90 W
Input Voltage
- Redundant dual inputs
  24/48 VDC
Operating Voltage
- 18 to 72 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported
Input Current
- Max. 2.53 A @ 24 VDC
  Max. 1.25 A @ 48 VDC
Power Consumption (Max.)
- Max. 60.72 W @ 24 VDC
  Max. 60 W @ 48 VDC

Physical Characteristics

IP Rating
- IP30
Dimensions
- 440 x 44 x 300 mm (17.32 x 1.37 x 11.81 in)
Weight
- 5200 g (11.46 lb)
Installation
- Rack mounting

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- EN IEC 62368-1
  IEC 60950-1
  IEC 62368-1
  UL 61010
  UL 62368-1
EMC
- EN 55032/35
  EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
Traffic Control
- NEMA TS2
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
  IEC 61000-4-11 Voltage Dips & Interruptions
Power Substation
- IEC 61850-3
  IEEE 1613
Railway
- EN 50121-4
Freefall
- IEC 60068-2-32
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
Industrial Cybersecurity
- IEC 62443-4-1
  IEC 62443-4-2

MTBF

Time
- 449,160 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
