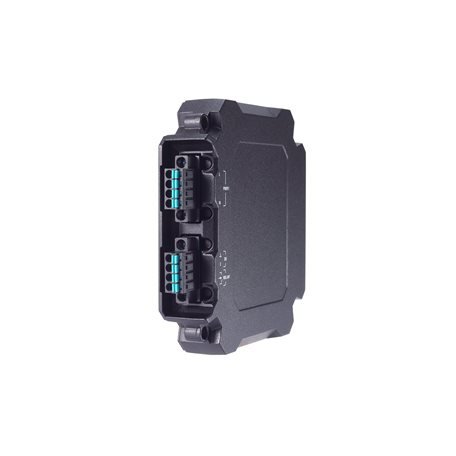

Moxa PWR-105-HV-I

Power module for the EDS-4000/G4000 Series with 110/220 VDC/VAC single input, power isolation, 88 to 300 VDC or 85 to 264 VAC operating voltage

Preis auf Anfrage

Power module for the EDS-4000/G4000 Series with 110/220 VDC/VAC single input, power isolation, 88 to 300 VDC or 85 to 264 VAC operating voltage

Note
- The EDS-4000/G4000 Series device model name and power parameters are determined by the installed PWR-100 power module.

  PWR-100–LV: -LV/-LV-T models
  PWR-105-HV-I: -HV/-HV-T models
  PWR-101-LV-BP-I: -LVA/-LVA-T models (PoE support)
  PWR-103-LV-VB-I: -LVB/-LVB-T models (PoE support)

  For example:
  EDS-G4008-T + PWR-100-LV = EDS-G4008-LV-T
  EDS-G4008-T + PWR-105-HV-I = EDS-G4008-HVT

  If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4008-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-G4008-HV-T.

  Power over Ethernet:
  Only the EDS-4008-4P-2GT-2GS(-T), EDS-4012-8P-4GS(-T), and EDS-G4012-8P-4QGS(-T) models support PoE. If a PoE-capable PWR-100 Series module (PWR-101-LV-BP-I, PWR-103-LV-VB-I) is installed into an EDS-4000/G4000 Series non-PoE model, PoE functionality will not be available.
Connection
- 2 removable 4-contact terminal block(s)
Input Voltage
- 110/220 VDC/VAC VDC
Operating Voltage
- 88 to 300 VDC, 85 to 264 VAC
Input Current
- 110 to 220 VAC, 50 to 60 Hz, 0.30 to 0.20 A or 110 to 220 VDC, 0.30 to 0.20 A
No. of Power Inputs
- Single input
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Operating Temperature
- The operating temperature is dependent on the EDS-4000/G4000 switch the module is installed in. Please refer to the respective EDS-4000/G4000 Series datasheet for more information.
Storage Temperature
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
