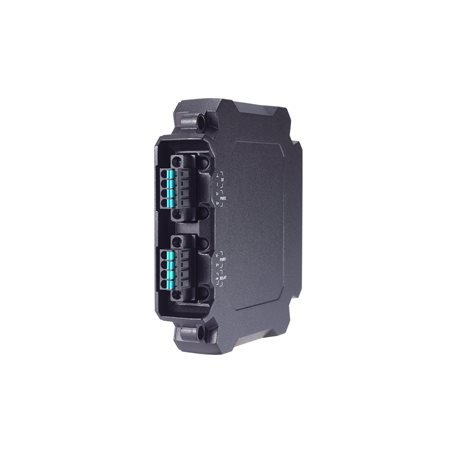

Moxa PWR-100-LV

Moxa PWR-100-LV

Artikelnummer: PWR-100-LV
Kategorie: PWR-100 Power Module Series
Hersteller: Moxa

Power module for the EDS-4000/G4000 Series with 12/24/48 VDC redundant dual inputs, 9.6 to 60 VDC operating voltage

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.

Beschreibung

PWR-100-LV

PWR-100 Power Module Series

Power module for the EDS-4000/G4000 Series with 12/24/48 VDC redundant dual inputs, 9.6 to 60 VDC operating voltage

Power Parameters

Note
- The EDS-4000/G4000 Series device model name and power parameters are determined by the installed PWR-100 power module.

  PWR-100–LV: -LV/-LV-T models
  PWR-105-HV-I: -HV/-HV-T models
  PWR-101-LV-BP-I: -LVA/-LVA-T models (PoE support)
  PWR-103-LV-VB-I: -LVB/-LVB-T models (PoE support)

  For example:
  EDS-G4008-T + PWR-100-LV = EDS-G4008-LV-T
  EDS-G4008-T + PWR-105-HV-I = EDS-G4008-HVT

  If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4008-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-G4008-HV-T.

  Power over Ethernet:
  Only the EDS-4008-4P-2GT-2GS(-T), EDS-4012-8P-4GS(-T), and EDS-G4012-8P-4QGS(-T) models support PoE. If a PoE-capable PWR-100 Series module (PWR-101-LV-BP-I, PWR-103-LV-VB-I) is installed into an EDS-4000/G4000 Series non-PoE model, PoE functionality will not be available.
Connection
- 2 removable 4-contact terminal block(s)
Input Voltage
- 12/24/48 VDC VDC
Operating Voltage
- 9.6 to 60 VDC
Input Current
- 12 to 48 VDC, 1.50 to 0.40 A or 24 VDC, 0.70 A
No. of Power Inputs
- Redundant dual inputs
Inrush Current (Max.)
- Max. 0.8 A @ 48 VDC (0.1 to 1 ms)
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Dimensions
- 103 x 98 x 26.6 mm (4.06 x 3.86 x 1.02 in)
Weight
- 142 g (31 lb)

Environmental Limits

Operating Temperature
- The operating temperature is dependent on the EDS-4000/G4000 switch the module is installed in. Please refer to the respective EDS-4000/G4000 Series datasheet for more information.
Storage Temperature
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- EN 62368-1 (LVD)
EMI
- FCC Part 15 Subpart B Class A
EMC
- EN 55032/35
  EN 61000-6-2/-6-4
EMS
- EN 61000-4-2 (ESD) Level 4
  EN 61000-4-3 (RS) Level 3
  EN 61000-4-4 (EFT) Level 4
  EN 61000-4-5 (Surge) Level 4
  EN 61000-4-6 (CS) Level 3
  EN 61000-4-8 Level 4
Vibration
- ISTA 1A

Warranty

Warranty Period
- 5 years
