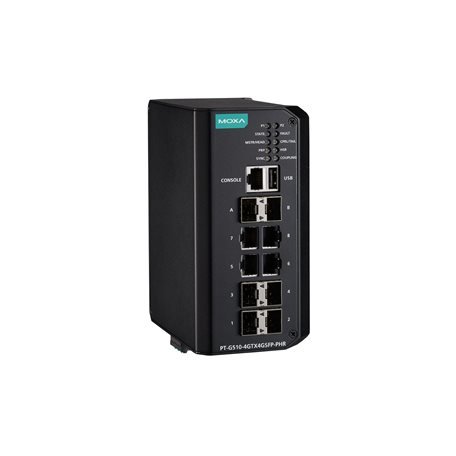

Moxa PT-G510-4GTX4GSFP-PHR-HV

Artikelnummer: PT-G510-4GTX4GSFP-PHR-HV
Kategorie: PT-G510 Series
Hersteller: Moxa

IEC 61850-3 and IEC 62439-3 full Gigabit managed Ethernet switch with 4 100/1000BaseT(X) ports, 6 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.

Beschreibung

PT-G510-4GTX4GSFP-PHR-HV

PT-G510 Series

Ethernet Interface

100/1000BaseT(X) Ports (RJ45 connector)
- 4
100/1000BaseSFP Ports
- 6
Standards
- IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3z for 1000BaseX
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1X for authentication
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3x for flow control

Ethernet Software Features

Management
- HTTPS
  Back Pressure Flow Control
  DHCP Option 66/67/82
  Fiber check
  Flow control
  LLDP
  Port Mirror
  SNMP Inform
  BOOTP
  DHCP Server/Client
  HTTP
  IPv4/IPv6
  RARP
  SMTP
  SNMPv1/v2c/v3
  Syslog
  Telnet
  TFTP
MIB
- MIB-II
  Ethernet-like MIB
  Bridge MIB
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RSTP MIB
  RMON MIB Groups 1, 2, 3, 9
Filter
- IGMP v1/v2/v3
  GMRP
  GVRP
  802.1Q
  QinQ VLAN
Redundancy Protocols
- Link Aggregation
  MSTP
  RSTP
  STP
  Turbo Chain
  Turbo Ring
  MRP
  HSR
  PRP
  Coupling
  RSTP grouping
Security
- RADIUS
  TACACS+
  SSH
  Port Lock
  Broadcast storm protection
  MAB authentication
  Sticky MAC
  Access control list
Time Management
- NTP Server/Client
  SNTP
  IEEE 1588v2 PTP (hardware-based)
Power Substation
- GOOSE Check
  IEC 61850 QoS
  MMS

Switch Properties

Priority Queues
- 8
Max. No. of VLANs
- 256
VLAN ID Range
- 1 to 4094
RSTP Grouping ID Range
- 1 to 4094
IGMP Groups
- 4096
MAC Table Size
- 16 K
Packet Buffer Size
- 12 Mbits

Serial Interface

Console Port
- RS-232 (RJ45)

USB Interface

Storage Port
- USB Type A

Power Parameters

Input Voltage
- 110-220 VAC, 110-220 VDC (88 to 300 VDC, 85 to 264 VAC)
Input Current
- 0.5 A @ 110-220 VAC
  0.3 A @ 110-220 VDC
Alarm Contact Channels
- Resistive load: 1 A @ 24 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

IP Rating
- IP30
Dimensions (without ears)
- 74 x 148 x 120 mm (2.91 x 5.83 x 4.72 in)
Weight
- 1476 g (3.25 lb)
Installation
- DIN-rail mounting

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
  -40 to 85°C (-40 to 185°F) for 16 hrs (tested in accordance with IEC 60068-2-2)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
  EN 61000-4-11
Power Substation
- IEC 61850-3 Edition 2.0 Class 2
  IEEE 1613
Railway
- EN 50121-4
Safety
- IEC 62368-1
  UL 62368-1

MTBF

Time
- 688,584 hrs
Standards
- Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
