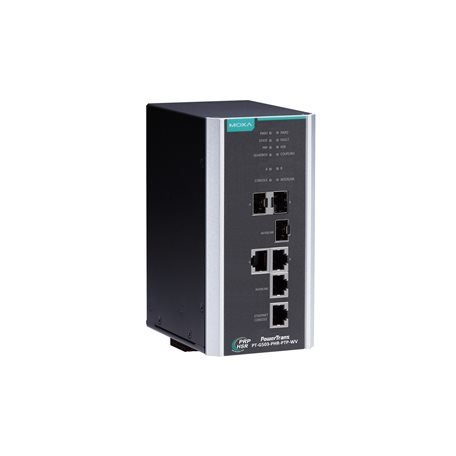

Moxa PT-G503-PHR-PTP-WV

Artikelnummer: PT-G503-PHR-PTP-WV
Kategorie: PT-G503 Series
Hersteller: Moxa

IEC 61850-3 and IEC 62439-3 full Gigabit managed redundancy box, with 3 10/100/1000BaseT(X) ports or 100/1000Base SFP ports, 1 10/100/1000BaseT(X) Ethernet console port, 1 isolated dual power supply (24/48 VDC), -40 to 85°C operating temperature

2.757,72 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

PT-G503-PHR-PTP-WV

PT-G503 Series

Ethernet Interface

Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- 3
Console Port
- Ethernet console (10/100/1000Mbps RJ45)
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

Filter
- Static Multicast
Management
- Back Pressure Flow Control, BOOTP, DHCP Client, Fiber check, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet
Power Substation
- MMS
Redundancy Protocols
- HSR, PRP, RSTP grouping
Security
- HTTPS/SSL, TACACS+, RADIUS, SSH, Trust access control
Time Management
- NTP Server/Client, SNTP, IEEE 1588v2 PTP (hardware-based)
MIB
- IEC 62439-3 MIB

USB Interface

Storage Port
- USB Type A

Serial Interface

Console Port
- USB-serial console (Type B connector)

Input/Output Interface

Alarm Contact Channels
- Resistive load: 1 A @ 24 VDC
Digital Inputs
- +13 to +30 V for state 1
  -30 to +3 V for state 0
  Max. input current: 8 mA

Power Parameters

Input Current
- 0.660/0.360 A @ 24/48 VDC
Input Voltage
- 24/48 VDC (18 to 72 VDC)
Power Connector
- 1 removable 5-contact terminal block(s)
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Aluminum
IP Rating
- IP40
Dimensions (without ears)
- 80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in)
Weight
- 1210 g (2.69 lb)
Installation
- DIN-rail mounting

Environmental Limits

Operating Temperature
- -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- UL 508
EMI
- EN 55032 Class A, CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
  IEC 61000-4-11 DIPs
Power Substation
- IEC 61850-3, IEEE 1613
Railway
- EN 50121-4

MTBF

Time
- 440,857 hrs
Standards
- Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
