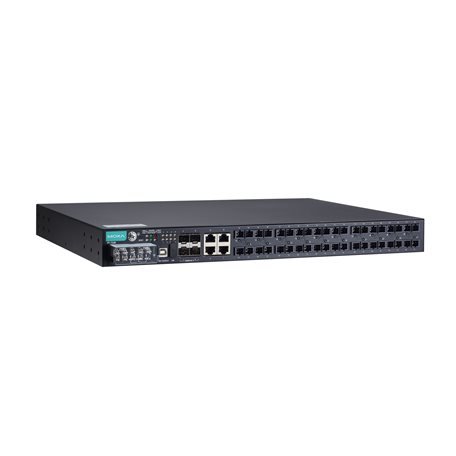

Moxa PT-7528-20MSC-4TX-4GSFP-HV

Artikelnummer: PT-7528-20MSC-4TX-4GSFP-HV
Kategorie: PT-7528 Series
Hersteller: Moxa

IEC 61850-3 managed rackmount Ethernet switch with 20 100BaseFX ports (MSC), 4 10/100BaseT(X) ports, and 4 1000BaseSFP ports, for a total of up to 28 ports, 1 isolated power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 85°C operating temperature

5.187,14 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

PT-7528-20MSC-4TX-4GSFP-HV

PT-7528 Series

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 4
100/1000BaseSFP Ports
- 4
100BaseFX Ports (multi-mode SC connector)
- 20

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km	80 km
Wavelength	Typical (nm)	1300		1310	1550
	TX Range (nm)	1260 to 1360		1280 to 1340	1530 to 1570
	RX Range (nm)	1100 to 1600		1100 to 1600	1100 to 1600
Optical Power	TX Range (dBm)	-14 to -20*		0 to -5	0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34	-3 to -34
	Link Budget (dB)	12		29	29
	Dispersion Penalty (dB)	3		1	1
*This range only applies to the PT-7528 multi-mode SC and ST fiber modules. Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Cabling Direction
- Front cabling
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

Filter
- 802.1Q
  GMRP
  GVRP
  IGMP v1/v2c
  Port-based VLAN
  VLAN unaware
Industrial Protocols
- EtherNet/IP
  Modbus TCP
Management
- Back Pressure Flow Control
  BOOTP
  DHCP Option 66/67/82
  DHCP Server/Client
  Flow control
  HTTP
  IPv4/IPv6
  LLDP
  Port Mirror
  RARP
  RMON
  SMTP
  SNMP Inform
  SNMPv1/v2c/v3
  Syslog
  Telnet
  TFTP
  Fiber check
MIB
- Bridge MIB
  Ethernet-like MIB
  MIB-II
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB
Power Substation
- IEC 61850 QoS
  MMS
  Configuration Wizard
Redundancy Protocols
- Link Aggregation
  MSTP
  RSTP
  STP
  Turbo Chain
  Turbo Ring v1/v2
Security
- Broadcast storm protection
  HTTPS/SSL
  TACACS+
  Port Lock
  RADIUS
  Rate Limit
  SSH
Time Management
- NTP Server/Client
  SNTP

Switch Properties

IGMP Groups
- 256
Jumbo Frame Size
- 9.6 KB
Max. No. of VLANs
- 256
VLAN ID Range
- VID 1 to 4094
Priority Queues
- 4
Switching Capacity
- 12.8 Gbps
Forwarding Capacity
- 12.8 Gbps

USB Interface

Storage Port
- USB Type A

Serial Interface

Console Port
- USB-serial console (Type B connector)

Input/Output Interface

Alarm Contact Channels
- Resistive load: 3 A @ 30 VDC, 240 VAC

Power Parameters

Connection
- 10-pin terminal block
Input Voltage
- 110/220 VAC/VDC (85 to 264 VAC, 88 to 300 VDC)
Input Current
- 0.586/0.382 A @ 110/220 VAC
  0.313/0.167 A @ 110/220 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Aluminum
IP Rating
- IP40
Dimensions (without ears)
- 440 x 44 x 325 mm (17.32 x 1.73 x 12.80 in)
Weight
- 4900 g (10.89 lb)
Installation
- 19-inch rack mounting

Environmental Limits

Operating Temperature
- -40 to 85°C (-40 to 185°F)
  Note: Cold start requires minimum of 100 VAC @ -40°C
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMI
- EN 55032 Class A
  CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Safety
- UL 508
Power Substation
- IEC 61850-3
  IEEE 1613 Class 2
  Note: Models with MCS and SSC fiber ports are compliant with IEEE 1613 Class 1
Railway
- EN 50121-4
Traffic Control
- NEMA TS2

MTBF

Time
- 771,320 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
