Moxa PT-508-MM-SC-HV

Artikelnummer: PT-508-MM-SC-HV
Kategorie: PT-508 Series
Hersteller: Moxa

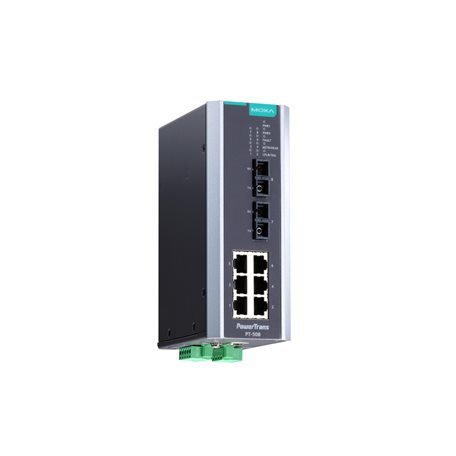

IEC 61850-3 managed DIN-Rail Ethernet switch, with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 1 isolated power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 85°C operating temperature

1.279,88 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

PT-508-MM-SC-HV

PT-508 Series

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 6
100BaseFX Ports (multi-mode SC connector)
- 2

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control

Ethernet Software Features

Filter
- 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware
Industrial Protocols
- EtherNet/IP, Modbus TCP
Management
- Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
- Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
- Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Security
- HTTPS/SSL, TACACS+, Port Lock, RADIUS, Rate Limit, SSH
Time Management
- NTP Server/Client, SNTP, 100BaseFX Single-Mode

Switch Properties

IGMP Groups
- 256
MAC Table Size
- 8 K
Max. No. of VLANs
- 64
Packet Buffer Size
- 1 Mbits
VLAN ID Range
- VID 1 to 4094
Priority Queues
- 4

Serial Interface

Console Port
- RS-232 (RJ45)

Input/Output Interface

Alarm Contact Channels
- Resistive load: 1 A @ 24 VDC

Power Parameters

Connection
- 1 removable 5-contact terminal block(s)
Input Voltage
- 110/220 VAC/VDC (88 to 300 VAC, 85 to 264 VDC)
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported
Input Current
- 0.18/0.11 A @ 110/220 VAC
  0.084/0.043 A @ 110/220 VDC

Physical Characteristics

Housing
- Aluminum
IP Rating
- IP40
Dimensions (without ears)
- 60 x 160 x 110 mm (2.36 x 6.30 x 4.33 in)
Weight
- 995 g (2.21 lb)
Installation
- DIN-rail mounting, DIN-rail mounting (with optional kit)

Environmental Limits

Operating Temperature
- -40 to 85°C (-40 to 185°F)
  Note: Cold start requires minimum of 100 VAC @ -40°C
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMI
- EN 55032 Class A, CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Power Substation
- IEC 61850-3, IEEE 1613
Safety
- UL 508

MTBF

Time
- 394,238 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
