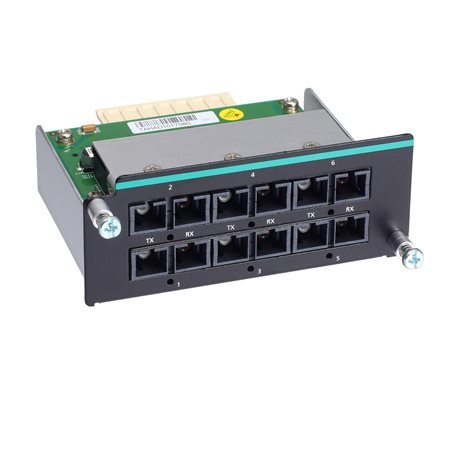

Moxa IM-6700A-6SSC

Moxa IM-6700A-6SSC

Artikelnummer: IM-6700A-6SSC
Kategorie: IM-6700A Module Series
Hersteller: Moxa

Fast Ethernet module with 6 single-mode 100BaseFX ports with SC connectors

1.176,98 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

IM-6700A-6SSC

IM-6700A Module Series

Fast Ethernet module with 6 single-mode 100BaseFX ports with SC connectors

Ethernet Interface

100BaseFX Ports (single-mode SC connector)
- 6

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Power Parameters

Power Consumption
- 7.57 W (max.)

Physical Characteristics

Weight
- 390 g (0.86 lb)

MTBF

Time
- 3,153,055 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
