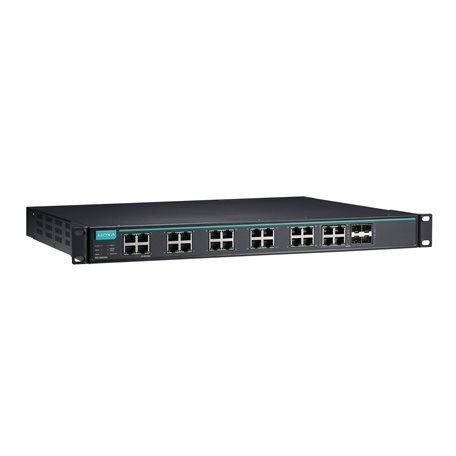

Moxa IKS-G6524A-4GTXSFP-HV-HV

Artikelnummer: IKS-G6524A-4GTXSFP-HV-HV
Kategorie: IKS-G6524A Series
Hersteller: Moxa

Layer 2 full Gigabit managed Ethernet switch with 20 10/100/1000BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 2 isolated power supplies (85 to 264 VAC), 0 to 60°C operating temperature

4.226,74 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

IKS-G6524A-4GTXSFP-HV-HV

IKS-G6524A Series

Input/Output Interface

Alarm Contact Channels
- Relay output with current carrying capacity of 2 A @ 30 VDC
Digital Inputs
- +13 to +30 V for state 1
  -30 to +1 V for state 0
  Max. input current: 8 mA

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)
- 20
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- 4
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

Management
- ARP
  Back Pressure Flow Control
  BOOTP
  DDM
  DHCP Option 66/67/82
  DHCP Server/Client
  IPv4/IPv6
  LLDP
  Port Mirror
  RMON
  SCP
  SNMP Inform
  SNMPv1/v2c/v3
  Syslog
  Telnet
  TFTP
  SMTP
  RARP
  Flow control
Filter
- 802.1Q
  BPDU Filter
  BPDU Guard
  GMRP
  GVRP
  IGMP v1/v2/v3
Redundancy Protocols
- Link Aggregation
  MRP
  MSTP
  RSTP
  Turbo Chain
  Turbo Ring v1/v2
  V-ON
Security
- Access control list
  Broadcast storm protection
  HTTPS/SSL
  MAB authentication
  Sticky MAC
  NTP authentication
  Port Lock
  RADIUS
  SSH
  TACACS+
Time Management
- NTP Server/Client
  SNTP
Industrial Protocols
- EtherNet/IP
  Modbus TCP
  PROFINET
MIB
- Bridge MIB
  Ethernet-like MIB
  MIB-II
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB

Switch Properties

DRAM
- 128 MB
Flash
- 16 MB
IGMP Groups
- 4096
Jumbo Frame Size
- 9.6 KB
MAC Table Size
- 16 K
Max. No. of VLANs
- 256
Packet Buffer Size
- 12 Mbits
VLAN ID Range
- VID 1 to 4094
Priority Queues
- 8

USB Interface

Storage Port
- USB Type A

Serial Interface

Console Port
- USB-serial console (Type B connector)

Power Parameters

Input Voltage
- 110 to 240 VAC
  Redundant dual inputs
Operating Voltage
- 85 to 264 VAC
Input Current
- Max. 0.66 A @ 110 VAC
  Max. 0.39 A @ 220 VAC
Power Consumption
- Max. 37.83 W @ 110 VAC
  Max. 40.15 W @ 220 VAC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

IP Rating
- IP30
Dimensions
- 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)
Weight
- 5100 g (11.25 lb)
Installation
- Rack mounting

Environmental Limits

Operating Temperature
- -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
- -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- UL 62368-1
  IEC 62368-1
  UL 61010-2-201
  EN 61010-2-201
EMC
- EN 55032/35
  EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Railway
- EN 50121-4
Traffic Control
- NEMA TS2
Freefall
- IEC 60068-2-32
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6

MTBF

Time
- 697,302 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
