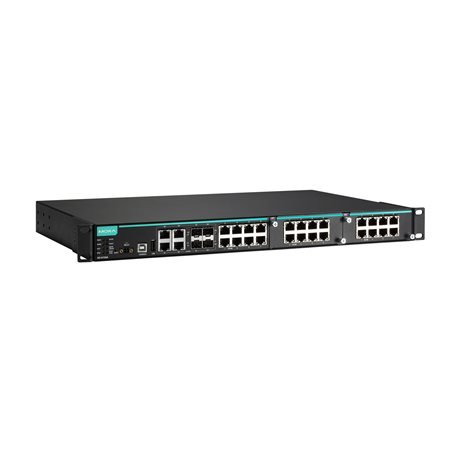

Moxa IKS-6728A-4GTXSFP-48-48-T

Artikelnummer: IKS-6728A-4GTXSFP-48-48-T
Kategorie: IKS-6728A Series
Hersteller: Moxa

Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules, front cabling, 2 isolated power supplies (48 VDC), -40 to 75°C operating temperature

2.259,88 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

IKS-6728A-4GTXSFP-48-48-T

IKS-6728A Series

Input/Output Interface

Alarm Contact Channels
- 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 8
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
- 4
Module
- 2 modular slots for any 8-port or 6-port Interface Modules with 10/100BaseT(X), 100BaseFX (SC/ST connector), 100Base PoE/PoE+, or 100Base SFP See the IM-6700A datasheet for Fast Ethernet module product information.
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

Management
- Back Pressure Flow Control
  BOOTP
  DDM
  DHCP Option 66/67/82
  DHCP Server/Client
  Flow control
  IPv4/IPv6
  LLDP
  Port Mirror
  RARP
  RMON
  SCP
  SMTP
  SNMP Inform
  SNMPv1/v2c/v3
  Syslog
  Telnet
  TFTP
Filter
- 802.1Q
  BPDU Filter
  BPDU Guard
  GMRP
  GVRP
  IGMP v1/v2/v3
Redundancy Protocols
- Link Aggregation
  MRP
  MSTP
  RSTP
  STP
  Turbo Chain
  Turbo Ring v1/v2
  V-ON
Security
- Access control list
  Broadcast storm protection
  HTTPS/SSL
  MAB authentication
  NTP authentication
  Port Lock
  RADIUS
  SSH
  TACACS+
Time Management
- NTP Server/Client
  SNTP
Industrial Protocols
- EtherNet/IP
  Modbus TCP
  PROFINET
MIB
- Ethernet-like MIB
  MIB-II
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB

Switch Properties

IGMP Groups
- 2048
Jumbo Frame Size
- 9.6 KB
MAC Table Size
- 16 K
Max. No. of VLANs
- 64
Packet Buffer Size
- 12 Mbits
Priority Queues
- 4
VLAN ID Range
- VID 1 to 4094

USB Interface

Storage Port
- USB Type A

Serial Interface

Console Port
- USB-serial console (Type B connector)

Power Parameters

Input Voltage
- 48 VDC
  Redundant dual inputs
Operating Voltage
- 36 to 72 VDC
Input Current
- 1.1/0.6 A @ 24/48 VDC
  0.46/0.31 A @ 110/220 VAC
  Note: These are the input current ratings for the device with the maximum number of modules installed.
Power Consumption (Max.)
- 26.4/28.8 W @ 24/48 VDC
  29.28/31.92 W @ 110/220 VAC
  Note: These are the power consumption ratings for the device with the maximum number of modules installed.
Total PoE Power Budget
- IKS-6728A-PoE series: Maximum 720 W @ 48 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

IP Rating
- IP30
Dimensions
- 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)
Weight
- 4100 g (9.05 lb)
Installation
- Rack mounting

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Freefall
- IEC 60068-2-32
EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Railway
- EN 50121-4
Maritime
- ABS
  LR
  NK
  DNV
Safety
- EN 60950-1
  UL 60950-1
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6

MTBF

Time
- 325,077 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
