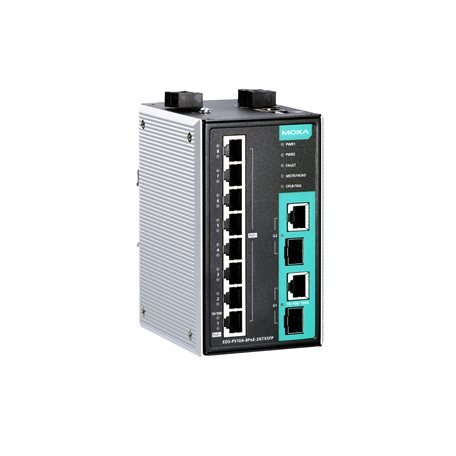

Moxa EDS-P510A-8PoE-2GTXSFP-T

Artikelnummer: EDS-P510A-8PoE-2GTXSFP-T
Kategorie: EDS-P510A Series
Hersteller: Moxa

Managed Gigabit Ethernet switch with 8 PoE/PoE+ 10/100BaseT(X) ports, 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE Series Gigabit/Fast Ethernet modules, -40 to 75°C operating temperature

1.794,38 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-P510A-8PoE-2GTXSFP-T

EDS-P510A Series

Ethernet Interface

Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- 2
  Full/Half duplex mode
  Auto MDI/MDI-X connection
  Auto negotiation speed
PoE Ports (10/100BaseT(X), RJ45 connector)
- 8
  Full/Half duplex mode
  Auto MDI/MDI-X connection
  Auto negotiation speed
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3af/at for PoE/PoE+ output
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

Filter
- GMRP, GVRP, IGMP v1/v2, Port-based VLAN
Industrial Protocols
- EtherNet/IP, Modbus TCP
Management
- Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
- Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
- LACP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Security
- HTTPS/SSL, Port Lock, RADIUS, TACACS+, SSH
Time Management
- NTP Server/Client, SNTP

Switch Properties

IGMP Groups
- 1024
MAC Table Size
- 8 K
Max. No. of VLANs
- 64
Packet Buffer Size
- 1 Mbits
Priority Queues
- 4
VLAN ID Range
- VID 1 to 4094

Serial Interface

Console Port
- RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

Ethernet Interface
- Turbo Ring, Master, Coupler, Reserve

Input/Output Interface

Alarm Contact Channels
- 1, Relay output with current carrying capacity of 0.5 A @ 48 VDC
Digital Input Channels
- 1
Digital Inputs
- Max. input current: 8 mA
  +13 to +30 V for state 1
  -30 to +3 V for state 0

Power Parameters

Input Voltage
- 48 VDC, Redundant dual inputs
Operating Voltage
- 44 to 57 VDC
Input Current
- 5.36 A @ 48 VDC
Power Consumption (Max.)
- Max. 17.28 W full loading without PDs’ consumption
Power Budget
- Max. 240 W for total PD consumption
  Max. 36 W for each PoE port
Connection
- 2 removable 2-contact terminal block(s)
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 79.2 x 135 x 105 mm (3.12 x 5.31 x 4.13 in)
Weight
- 1030 g (2.28 lb)
Installation
- DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- UL 508
EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Hazardous Locations
- Class I Division 2
Railway
- EN 50121-4
Traffic Control
- NEMA TS2
Freefall
- IEC 60068-2-31
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6

MTBF

Time
- 708,972 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
