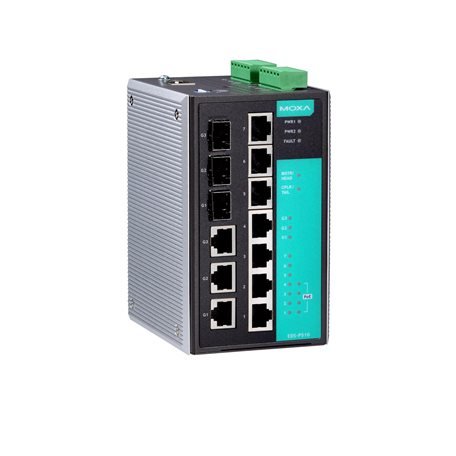

Moxa EDS-P510

Artikelnummer: EDS-P510
Kategorie: EDS-P510 Series
Hersteller: Moxa

Managed Gigabit Ethernet switch with 3 10/100BaseT(X) ports, 4 PoE 10/100BaseT(X) ports, 3 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE Series Gigabit/Fast Ethernet modules, 0 to 60°C operating temperature

1.451,38 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-P510

EDS-P510 Series

Ethernet Interface

Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- 3
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
10/100BaseT(X) Ports (RJ45 connector)
- 3
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
PoE Ports (10/100BaseT(X), RJ45 connector)
- 4
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
  IEEE 802.3af for PoE

Ethernet Software Features

Filter
- GMRP, GVRP, IGMP v1/v2, Port-based VLAN
Industrial Protocols
- EtherNet/IP, Modbus TCP
Management
- Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
- Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
- LACP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Security
- TACACS+, HTTPS/SSL, Port Lock, RADIUS, SSH
Time Management
- NTP Server/Client, SNTP

Input/Output Interface

Alarm Contact Channels
- 2, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels
- 2
Digital Inputs
- -30 to +3 V for state 0
  +13 to +30 V for state 1
  Max. input current: 8 mA

Switch Properties

IGMP Groups
- 1024
MAC Table Size
- 8 K
Max. No. of VLANs
- 64
Packet Buffer Size
- 1 Mbits
Priority Queues
- 4
VLAN ID Range
- VID 1 to 4094

Serial Interface

Console Port
- RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

Ethernet Interface
- Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection
- 2 removable 6-contact terminal block(s)
Input Current
- 1.5 A @ 48 VDC
Input Voltage
- 48 VDC, Redundant dual inputs
Operating Voltage
- 44 to 57 VDC
Overload Current Protection
- Supported
Power Budget
- Max. 15.4 W for each PoE port
  Max. 61.6 W for total PD consumption
Power Consumption (Max.)
- Max. 14.24 W full loading without PDs’ consumption
Reverse Polarity Protection
- Supported

Physical Characteristics

Dimensions
- 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
Housing
- Metal
Installation
- DIN-rail mounting, Wall mounting (with optional kit)
IP Rating
- IP30
Weight
- 1,170 g (2.58 lb)

Environmental Limits

Ambient Relative Humidity
- 5 to 95% (non-condensing)
Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)

Standards and Certifications

Safety
- UL 508
EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Maritime
- ABS, DNV-GL, LR, NK
Freefall
- IEC 60068-2-31
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6

MTBF

Time
- 205,384 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
