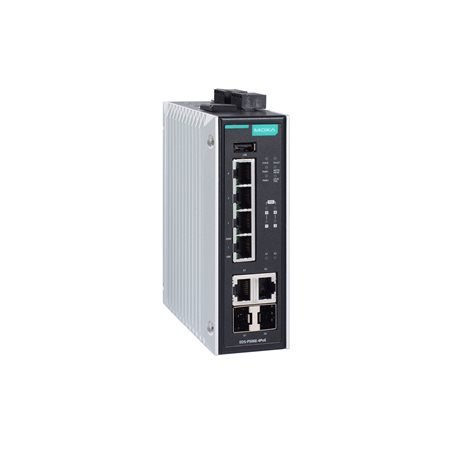

Moxa EDS-P506E-4PoE-2GTXSFP-T

Artikelnummer: EDS-P506E-4PoE-2GTXSFP-T
Kategorie: EDS-P506E Series
Hersteller: Moxa

Managed Ethernet switch with 4 PoE+/60W 10/100BaseT(X) ports, 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperature

1.395,52 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-P506E-4PoE-2GTXSFP-T

EDS-P506E Series

Managed Ethernet switch with 4 PoE+/60W 10/100BaseT(X) ports, 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperature

Ethernet Interface

Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- 2
  Full/Half duplex mode
  Auto MDI/MDI-X connection
  Auto negotiation speed
PoE Ports (10/100BaseT(X), RJ45 connector)
- 4
  Full/Half duplex mode
  Auto MDI/MDI-X connection
  Auto negotiation speed
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

Filter
- 802.1Q VLAN
  BPDU Filter
  BPDU Guard
  GMRP
  GVRP
  IGMP v1/v2/v3
  Port-based VLAN
Industrial Protocols
- EtherNet/IP
  Modbus TCP
  PROFINET
Management
- Back Pressure Flow Control
  BOOTP
  DDM
  DHCP Option 66/67/82
  DHCP Server/Client
  Fiber check
  Flow control
  IPv4/IPv6
  RARP
  RMON
  SCP
  SMTP
  SNMP Inform
  SNMPv1/v2c/v3
  Syslog
  Telnet
  TFTP
MIB
- Bridge MIB
  Ethernet-like MIB
  MIB-II
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB
Redundancy Protocols
- Link Aggregation
  MRP
  MSTP
  RSTP
  STP
  Turbo Chain
  Turbo Ring v1/v2
Security
- Broadcast storm protection
  HTTPS/SSL
  MAC ACL
  TACACS+
  MAB authentication
  Sticky MAC
  NTP authentication
  Port Lock
  RADIUS
  SSH
Time Management
- IEEE 1588v2 PTP (software-based)
  NTP Server/Client
  SNTP

Switch Properties

IGMP Groups
- 256
Jumbo Frame Size
- 9.6 KB
MAC Table Size
- 8 K
Packet Buffer Size
- 12 Mbits
Priority Queues
- 4
Max. No. of VLANs
- 64
VLAN ID Range
- VID 1 to 4094

USB Interface

Storage Port
- USB Type A

LED Interface

LED Indicators
- PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 10/100/1000M (Gigabit Combo port), MSTR/HEAD, CPLR/TAIL, PoE

Serial Interface

Console Port
- USB-serial console (Type B connector)

Input/Output Interface

Digital Input Channels
- 1
Digital Inputs
- Max. input current: 8 mA
  +13 to +30 V for state 1
  -30 to +3 V for state 0
Alarm Contact Channels
- 1
  Relay output with current carrying capacity of 0.5 A @ 48 VDC
Buttons
- Reset button

DIP Switch Configuration

Ethernet Interface
- Turbo Ring, Master, Coupler, Reserve

Power Parameters

Input Voltage
- 12/24/48 VDC
  Redundant dual inputs
Operating Voltage
- 12 to 57 VDC (> 50 VDC for PoE+ output recommended)
Input Current
- 4.08 A @ 48 VDC
Max. PoE Power Output per Port
- 60 W
Connection
- 2 removable 4-contact terminal block(s)
Power Consumption (Max.)
- Max. 18.96 W full loading without PDs’ consumption
Total PoE Power Budget
- Max. 180 W for total PD's consumption @ 48 VDC input
  Max. 150 W for total PD's consumption @ 24 VDC input
  Max. 62 W for total PD's consumption @ 12 VDC input
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Metal
IP Rating
- IP40
Dimensions
- 49.1 x 135 x 116 mm (1.93 x 5.31 x 4.57 in)
Weight
- 910 g (2.00 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- UL 61010-2-201
  EN 61010-2-201
EMC
- EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Power Substation
- IEEE 1613
  IEC 61850-3 Edition 2.0
Railway
- EN 50121-4
Traffic Control
- NEMA TS2
Vibration
- IEC 60068-2-6
Bump
- IEC 61850-3 Edition 2.0
Freefall
- IEC 60068-2-31
Shock
- IEC 60068-2-27

MTBF

Time
- 755,167 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
