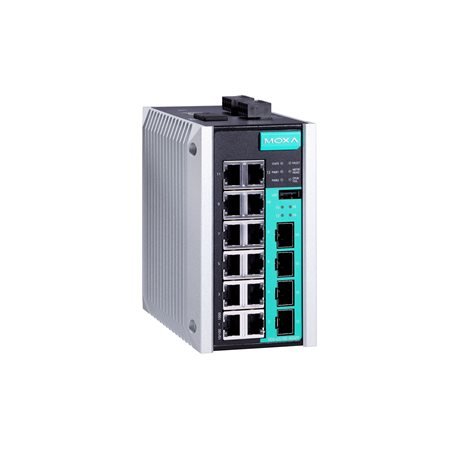

Moxa EDS-G516E-4GSFP-T

Moxa EDS-G516E-4GSFP-T

Artikelnummer: EDS-G516E-4GSFP-T
Kategorie: EDS-G516E Series
Hersteller: Moxa

16-port full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 4 Gigabit SFP slots, -40 to 75°C operating temperature

2.138,36 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-G516E-4GSFP-T

EDS-G516E Series

16-port full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 4 Gigabit SFP slots, -40 to 75°C operating temperature

Input/Output Interface

Alarm Contact Channels
- 1
  Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons
- Reset button
Digital Input Channels
- 1
Digital Inputs
- +13 to +30 V for state 1
  -30 to +3 V for state 0
  Max. input current: 8 mA

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)
- 12
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
100/1000BaseSFP Slots
- 4
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
  IEEE 802.3x for flow control
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1X for authentication
  IEEE 802.3ad for Port Trunk with LACP

Ethernet Software Features

Filter
- 802.1Q VLAN
  BPDU Filter
  BPDU Guard
  GMRP
  GVRP
  IGMP v1/v2/v3
  Port-based VLAN
Industrial Protocols
- EtherNet/IP
  Modbus TCP
  PROFINET IO Device
Management
- LLDP
  Back Pressure Flow Control
  BOOTP
  Port Mirror
  DHCP Option 66/67/82
  DHCP Server/Client
  Fiber check
  Flow control
  IPv4/IPv6
  RARP
  RMON
  SCP
  SMTP
  SNMP Inform
  SNMPv1/v2c/v3
  Syslog
  Telnet
  TFTP
MIB
- Ethernet-like MIB
  MIB-II
  Bridge MIB
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB
Redundancy Protocols
- Link Aggregation
  MRP
  MSTP
  RSTP
  STP
  Turbo Chain
  Turbo Ring v1/v2
Security
- Broadcast storm protection
  HTTPS/SSL
  TACACS+
  SNMPv3
  MAB authentication
  Sticky MAC
  NTP authentication
  MAC ACL
  Port Lock
  RADIUS
  SSH
  SMTP with TLS
Time Management
- NTP Server/Client
  SNTP

Switch Properties

IGMP Groups
- 2048
Jumbo Frame Size
- 9.6 KB
MAC Table Size
- 8 K
Max. No. of VLANs
- 256
Packet Buffer Size
- 4 Mbits
Priority Queues
- 4
VLAN ID Range
- VID 1 to 4094

USB Interface

Storage Port
- USB Type A

LED Interface

LED Indicators
- PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL

Serial Interface

Console Port
- USB-serial console (Type B connector)

DIP Switch Configuration

DIP Switches
- Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection
- 2 removable 4-contact terminal block(s)
Input Current
- 0.51 A @ 24 VDC
Input Voltage
- 12/24/48/-48 VDC
  Redundant dual inputs
Operating Voltage
- 9.6 to 60 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)
Weight
- 1440 g (3.18 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- UL 508
EMC
- EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Hazardous Locations
- ATEX
  Class I Division 2
Power Substation
- IEC 61850-3
  IEEE 1613
Railway
- EN 50121-4
Traffic Control
- NEMA TS2
Vibration
- IEC 60068-2-6
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-32
Maritime
- DNV
  LR
  ABS
  NK

MTBF

Time
- 808,933 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
