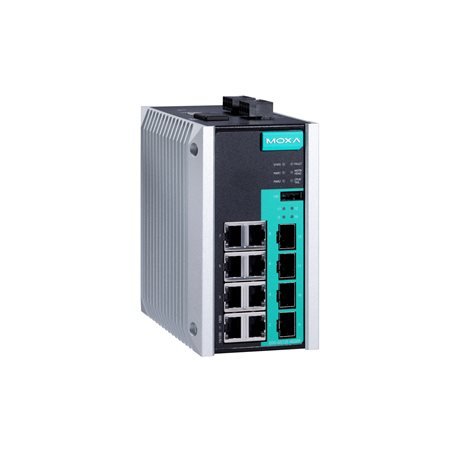

Moxa EDS-G512E-4GSFP

Moxa EDS-G512E-4GSFP

Artikelnummer: EDS-G512E-4GSFP
Kategorie: EDS-G512E Series
Hersteller: Moxa

12-port full Gigabit managed Ethernet switch with 8 10/100/1000BaseT(X) ports, 4 Gigabit SFP slots, -10 to 60°C operating temperature

1.394,54 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-G512E-4GSFP

EDS-G512E Series

12-port full Gigabit managed Ethernet switch with 8 10/100/1000BaseT(X) ports, 4 Gigabit SFP slots, -10 to 60°C operating temperature

Input/Output Interface

Alarm Contact Channels
- 1
  Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons
- Reset button
Digital Input Channels
- 1
Digital Inputs
- +13 to +30 V for state 1
  -30 to +3 V for state 0
  Max. input current: 8 mA

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)
- 8
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
100/1000BaseSFP Slots
- 4

Ethernet Software Features

Filter
- 802.1Q VLAN
  BPDU Filter
  BPDU Guard
  GMRP
  GVRP
  IGMP v1/v2/v3
  Port-based VLAN
Industrial Protocols
- EtherNet/IP
  Modbus TCP
  PROFINET IO Device
Management
- LLDP
  Back Pressure Flow Control
  BOOTP
  Port Mirror
  DHCP Option 66/67/82
  DHCP Server/Client
  Fiber check
  Flow control
  IPv4/IPv6
  RARP
  RMON
  SCP
  SMTP
  SNMP Inform
  SNMPv1/v2c/v3
  Syslog
  Telnet
  TFTP
MIB
- Ethernet-like MIB
  MIB-II
  Bridge MIB
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB
Redundancy Protocols
- Link Aggregation
  MRP
  MSTP
  RSTP
  STP
  Turbo Chain
  Turbo Ring v1/v2
Security
- Broadcast storm protection
  HTTPS/SSL
  TACACS+
  SNMPv3
  MAB authentication
  Sticky MAC
  NTP authentication
  IP ACL
  MAC ACL
  Port Lock
  RADIUS
  SSH
  SMTP with TLS
Time Management
- NTP Server/Client
  SNTP

Switch Properties

IGMP Groups
- 2048
Jumbo Frame Size
- 9.6 KB
MAC Table Size
- 8 K
Max. No. of VLANs
- 256
Packet Buffer Size
- 4 Mbits
Priority Queues
- 4
VLAN ID Range
- VID 1 to 4094

USB Interface

Storage Port
- USB Type A

LED Interface

LED Indicators
- PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL, smart PoE LED (EDS-G512E-8PoE-4GSFP Series only)

Serial Interface

Console Port
- USB-serial console (Type B connector)

DIP Switch Configuration

DIP Switches
- Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection
- 2 removable 4-contact terminal block(s)
Input Current
- 0.34 A @ 24 VDC
Input Voltage
- 12/24/48/-48 VDC
Operating Voltage
- 9.6 to 60 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)
Weight
- 1,440 g (3.18 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- UL 508
EMI
- FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
Hazardous Locations
- Class I Division 2
  ATEX
Power Substation
- IEC 61850-3
  IEEE 1613
Railway
- EN 50121-4
Traffic Control
- NEMA TS2
Vibration
- IEC 60068-2-6
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-32
Maritime
- LR
  ABS
  DNV
  NK

MTBF

Time
- 803,337 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
