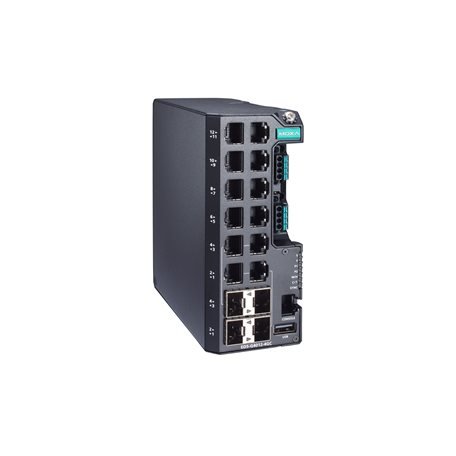

Moxa EDS-G4012-4GC-HV

Artikelnummer: EDS-G4012-4GC-HV
Kategorie: EDS-G4012 Series
Hersteller: Moxa

Managed Full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, single power supply 110/220 VAC/VDC, -10 to 60°C operating temperature

2.080,54 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-G4012-4GC-HV

EDS-G4012 Series

Managed Full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, single power supply 110/220 VAC/VDC, -10 to 60°C operating temperature

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)
- 8
  Auto MDI/MDI-X connection
  Auto negotiation speed
  Full/Half duplex mode
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
- 4
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3z for 1000BaseX
  IEEE 802.3bz for 2.5GBaseX
  IEEE 802.3x for flow control
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1X for authentication

Ethernet Software Features

Industrial Protocols
- EtherNet/IP
  Modbus TCP
  PROFINET IO Device
Management
- IPv4/IPv6
  Flow control
  Back Pressure Flow Control
  DHCP Server/Client
  ARP
  RARP
  LLDP
  Port Mirroring (SPAN, RSPAN)
  Linkup Delay
  SMTP
  SNMP Trap
  SNMP Inform
  SNMPv1/v2c/v3
  RMON
  TFTP
  SFTP
  HTTP
  HTTPS
  Telnet
  Syslog
  Private MIB
  Fiber check
Filter
- GMRP
  GVRP
  GARP
  802.1Q VLAN
  IGMP Snooping v1/v2/v3
  IGMP Querier
Redundancy Protocols
- STP
  RSTP
  Turbo Ring v2
  Turbo Chain
  Ring Coupling
  Dual-Homing
  MRP
  Link Aggregation
  MSTP
Security
- Broadcast storm protection
  Rate Limit
  Trust access control
  Static Port Lock
  MAC Sticky
  HTTPS/SSL
  SSH
  RADIUS
  TACACS+
  Login and Password Policy
  Access control list
  DHCP Snooping
Time Management
- SNTP
  NTP Server/Client
  NTP Authentication
  IEEE 1588v2 PTP (hardware-based)
  Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
Protocols
- IPv4/IPv6
  TCP/IP
  UDP
  ICMP
  ARP
  RARP
  TFTP
  DNS
  NTP Client
  DHCP Server
  DHCP Client
  802.1X
  QoS
  HTTPS
  HTTP
  Telnet
  SMTP
  SNMPv1/v2c/v3
  RMON
  Syslog
MIB
- P-BRIDGE MIB
  Q-BRIDGE MIB
  IEEE8021-SPANNING-TREE-MIB
  IEEE8021-PAE-MIB
  IEEE8023-LAG-MIB
  LLDP-EXT-DOT1-MIB
  LLDP-EXT-DOT3-MIB
  SNMPv2-MIB
  RMON MIB Groups 1, 2, 3, 9

Switch Properties

MAC Table Size
- 16 K
Jumbo Frame Size
- 9.216 KB
Max. No. of VLANs
- 256
VLAN ID Range
- VID 1 to 4094
IGMP Groups
- 512
Priority Queues
- 4
Packet Buffer Size
- 1 MB

LED Interface

LED Indicators
- PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC

Serial Interface

Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Interface

USB Connector
- USB Type A (Reserved)

Input/Output Interface

Alarm Contact Channels
- 1, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels
- 1
Digital Inputs
- +13 to +30 V for state 1
  -30 to +3 V for state 0
  Max. input current: 8 mA
Buttons
- Reset button

DIP Switch Configuration

DIP Switches
- Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection
- 2 removable 4-contact terminal block(s)
Pre-installed Power Module
- PWR-105-HV-I
Note
- The EDS-G4012 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.

  For example:
  EDS-G4012-4GC-T + PWR-100–LV = EDS-G4012-4GC-LV-T
  EDS-G4012-4GC-T + PWR-105-HV-I = EDS-G4012-4GC-HV-T

  If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4012-4GC-LV-T with the PWR-105–HV-I, refer to the specifications of the EDS-G4012-4GC-HV-T.
Input Voltage
- 110/220 VDC/VAC
  Single input
Operating Voltage
- 88 to 300 VDC, 85 to 264 VAC
Input Current
- 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
Power Consumption (Max.)
- 15.8 W
Max. PoE Power Output per Port
- 90 W
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

IP Rating
- IP40
Dimensions
- 55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in)
Weight
- 881.5 g (1.94 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)
Housing
- Metal

Environmental Limits

Operating Temperature
- -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Industrial Cybersecurity
- IEC 62443-4-1
  IEC 62443-4-2
Safety
- UL 61010-2-201
  EN 62368-1 (LVD)
EMC
- EN 55032/35
  EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Vibration
- IEC 60068-2-6
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-32
Railway
- EN 50121-4
Traffic Control
- NEMA TS2
Power Substation
- IEC 61850-3
  IEEE 1613 Class 1

MTBF

Time
- 456,870 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
