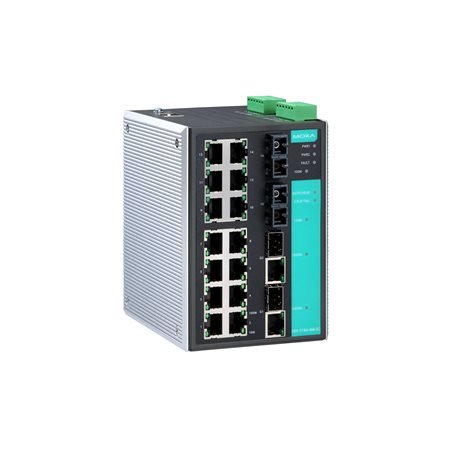

Moxa EDS-518A-MM-SC

Artikelnummer: EDS-518A-MM-SC
Kategorie: EDS-518A Series
Hersteller: Moxa

Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, 2 combo 10/100/1000BaseT(X) or 1000BaseSFP slots for adding SFP-1G Series Gigabit Ethernet modules, 0 to 60°C operating temperature

2.352,00 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-518A-MM-SC

EDS-518A Series

Input/Output Interface

Alarm Contact Channels
- Resistive load: 1 A @ 24 VDC
Digital Inputs
- +13 to +30 V for state 1
  -30 to +3 V for state 0
  Max. input current: 8 mA

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 14
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)
- 2
Combo Ports (10/100/1000BaseT(X) or 1000BaseSFP)
- 2

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
  IEEE 802.1X for authentication
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1p for Class of Service
  IEEE 802.3x for flow control
  IEEE 802.3ad for Port Trunk with LACP

Ethernet Software Features

Filter
- 802.1Q VLAN
  Port-based VLAN
  IGMP v1/v2
  GVRP
  GMRP
Industrial Protocols
- EtherNet/IP
  Modbus TCP
Management
- IPv4/IPv6
  SNMPv1/v2c/v3
  LLDP
  Port Mirror
  Back Pressure Flow Control
  BOOTP
  DDM
  DHCP Option 66/67/82
  DHCP Server/Client
  Flow control
  RARP
  RMON
  SMTP
  SNMP Inform
  Syslog
  Telnet
  TFTP
MIB
- MIB-II
  Bridge MIB
  Ethernet-like MIB
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB
Redundancy Protocols
- STP
  MSTP
  RSTP
  LACP
  Link Aggregation
  Turbo Chain
  Turbo Ring v1/v2
Security
- HTTPS/SSL
  TACACS+
  Port Lock
  RADIUS
  SSH
  Broadcast storm protection
Time Management
- NTP Server/Client
  SNTP

Switch Properties

IGMP Groups
- 256
MAC Table Size
- 8 K
Max. No. of VLANs
- 64
Packet Buffer Size
- 2 Mbits
Priority Queues
- 4
VLAN ID Range
- VID 1 to 4094

LED Interface

LED Indicators
- PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port),1000M (Gigabit port), MSTR/HEAD, CPLR/TAIL

Serial Interface

Console Port
- RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

Ethernet Interface
- Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection
- 2 removable 6-contact terminal block(s)
Input Current
- 0.52 A @ 24 VDC
Input Voltage
- 24 VDC
  Redundant dual inputs
Operating Voltage
- 12 to 45 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in)
Weight
- 1630 g (3.60 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- EN 62368-1
  UL 60950-1
  UL 508
EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Hazardous Locations
- ATEX
  Class I Division 2
Vibration
- IEC 60068-2-6
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-31
Maritime
- DNV
  NK
  LR

MTBF

Time
- 250,966 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
