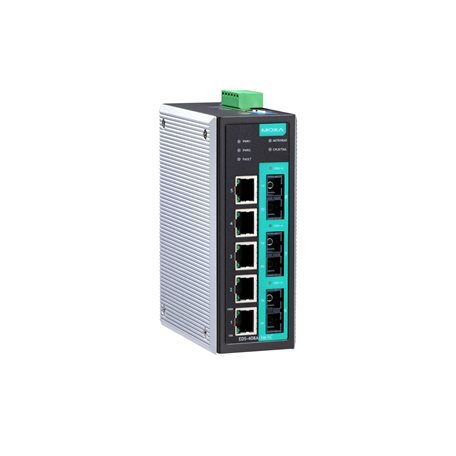

Moxa EDS-408A-3S-SC-48

Artikelnummer: EDS-408A-3S-SC-48
Kategorie: EDS-408A Series
Hersteller: Moxa

Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, 3 100BaseFX single-mode ports with SC connectors, ±24/±48 VDC input voltage, 0 to 60°C operating temperature

1.613,08 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-408A-3S-SC-48

EDS-408A Series

Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, 3 100BaseFX single-mode ports with SC connectors, ±24/±48 VDC input voltage, 0 to 60°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 5
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
100BaseFX Ports (single-mode SC connector)
- 3
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1w for Rapid Spanning Tree Protocol

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Ethernet Software Features

Filter
- 802.1Q VLAN
  GMRP
  GVRP
  IGMP v1/v2
  Port-based VLAN
Industrial Protocols
- EtherNet/IP
  Modbus TCP
Management
- Back Pressure Flow Control
  BOOTP
  DHCP Option 66/67/82
  DHCP Server/Client
  Flow control
  IPv4/IPv6
  LLDP
  Port Mirror
  RARP
  RMON
  SMTP
  SNMP Inform
  SNMPv1/v2c/v3
  Syslog
  Telnet
  TFTP
MIB
- Bridge MIB
  Ethernet-like MIB
  MIB-II
  P-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB
Redundancy Protocols
- RSTP
  STP
  Turbo Chain
  Turbo Ring v1/v2
Time Management
- NTP Server/Client
  SNTP

Switch Properties

IGMP Groups
- 256
MAC Table Size
- 8 K
Max. No. of VLANs
- 64
Packet Buffer Size
- 1 Mbits
Priority Queues
- 4
VLAN ID Range
- VID 1 to 4094

Serial Interface

Console Port
- RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

Ethernet Interface
- Turbo Ring, Master, Coupler, Reserve

Input/Output Interface

Alarm Contact Channels
- Relay output with current carrying capacity of 1 A @ 24 VDC

Power Parameters

Connection
- 1 removable 6-contact terminal block(s)
Input Voltage
- ±24/±48 VDC
  Redundant dual inputs
Operating Voltage
- ±19 to ±60 VDC
  Note: -60 to -19 VDC or 19 to 60 VDC. Do not mix power polarity systems.
Input Current
- 0.33 A @ 24 VDC
  0.17 A @ 48 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight
- 890 g (1.97 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- UL 508
EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Railway
- EN 50121-4
Traffic Control
- EDS-408A, EDS-408A-MM-SC/MM-ST/SS-SC/EIP/PN models: NEMA TS2
Vibration
- IEC 60068-2-6
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-31

MTBF

Time
- 989,940 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
