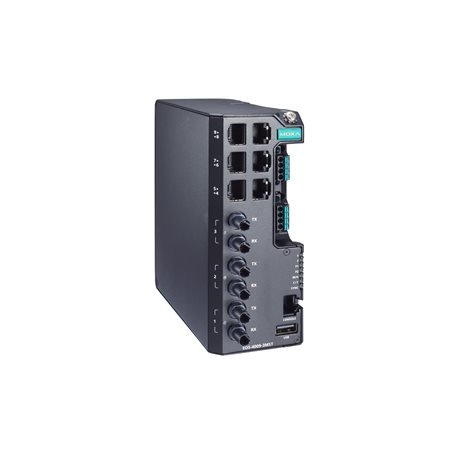

Moxa EDS-4009-3MST-HV

Artikelnummer: EDS-4009-3MST-HV
Kategorie: EDS-4009 Series
Hersteller: Moxa

Managed Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with ST connectors, single power supply 110/220 VAC/VDC, -10 to 60°C operating temperature

1.755,18 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDS-4009-3MST-HV

EDS-4009 Series

Managed Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with ST connectors, single power supply 110/220 VAC/VDC, -10 to 60°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 6
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode ST connector)
- 3
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1X for authentication

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Ethernet Software Features

Industrial Protocols
- EtherNet/IP
  Modbus TCP
  PROFINET IO Device
Management
- IPv4/IPv6
  Flow control
  Back Pressure Flow Control
  DHCP Server/Client
  ARP
  RARP
  LLDP
  Fiber check
  Port Mirroring (SPAN, RSPAN)
  Linkup Delay
  SMTP
  SNMP Trap
  SNMP Inform
  SNMPv1/v2c/v3
  RMON
  TFTP
  SFTP
  HTTP
  HTTPS
  Telnet
  Syslog
  Private MIB
Filter
- GMRP
  GVRP
  GARP
  802.1Q VLAN
  IGMP Snooping v1/v2/v3
  IGMP Querier
Redundancy Protocols
- STP
  RSTP
  Turbo Ring v2
  Turbo Chain
  Ring Coupling
  Dual-Homing
  Link Aggregation
  MRP
  MSTP
Security
- Broadcast storm protection
  Rate Limit
  Trust access control
  Static Port Lock
  MAC Sticky
  HTTPS/SSL
  SSH
  RADIUS
  TACACS+
  Access control list
  Login and Password Policy
  DHCP Snooping
Time Management
- SNTP
  NTP Server/Client
  NTP Authentication
  IEEE 1588v2 PTP (hardware-based)
  Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
Protocols
- IPv4/IPv6
  TCP/IP
  UDP
  ICMP
  ARP
  RARP
  TFTP
  DNS
  NTP Client
  DHCP Server
  DHCP Client
  802.1X
  QoS
  HTTPS
  HTTP
  Telnet
  SMTP
  SNMPv1/v2c/v3
  RMON
  Syslog
MIB
- P-BRIDGE MIB
  Q-BRIDGE MIB
  IEEE8021-SPANNING-TREE-MIB
  IEEE8021-PAE-MIB
  IEEE8023-LAG-MIB
  LLDP-EXT-DOT1-MIB
  LLDP-EXT-DOT3-MIB
  SNMPv2-MIB
  RMON MIB Groups 1, 2, 3, 9

Switch Properties

MAC Table Size
- 16 K
Jumbo Frame Size
- 9.216 KB
Max. No. of VLANs
- 256
VLAN ID Range
- VID 1 to 4094
IGMP Groups
- 512
Priority Queues
- 4
Packet Buffer Size
- 1 MB

LED Interface

LED Indicators
- PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC

Serial Interface

Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Interface

USB Connector
- USB Type A (Reserved)

Input/Output Interface

Alarm Contact Channels
- 1, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels
- 1
Digital Inputs
- +13 to +30 V for state 1
  -30 to +3 V for state 0
  Max. input current: 8 mA
Buttons
- Reset button

DIP Switch Configuration

DIP Switches
- Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection
- 2 removable 4-contact terminal block(s)
Pre-installed Power Module
- PWR-105-HV-I
Note
- The EDS-4009 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.

  For example:
  EDS-4009-T + PWR-100–LV = EDS-4009-LV-T
  EDS-4009-T + PWR-105-HV-I = EDS-4009-HV-T

  If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4009–LV-T
  with the PWR-105–HV-I, refer to the specifications of the EDS-4009–HV-T.
Input Voltage
- 110/220 VDC/VAC
  Single input
Operating Voltage
- 88 to 300 VDC, 85 to 264 VAC
Input Current
- 110-220 VAC, 50-60 Hz, 0.30-0.20 A
  110-220 VDC, 0.30-0.20 A
Power Consumption (Max.)
- 12.17 W
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

IP Rating
- IP40
Dimensions
- 55 x 140 x 132 mm (2.17 x 5.51 x 5.20 in)
Weight
- 920 g (2.03 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)
Housing
- Metal

Environmental Limits

Operating Temperature
- -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Industrial Cybersecurity
- IEC 62443-4-1
  IEC 62443-4-2
Safety
- UL 61010-2-201
  EN 62368-1 (LVD)
EMC
- EN 55032/35
  EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Vibration
- IEC 60068-2-6
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-32
Railway
- EN 50121-4
Traffic Control
- NEMA TS2
Power Substation
- IEC 61850-3
  IEEE 1613 Class 1

MTBF

Time
- 482,263 hrs

Warranty

Warranty Period
- 5 years
