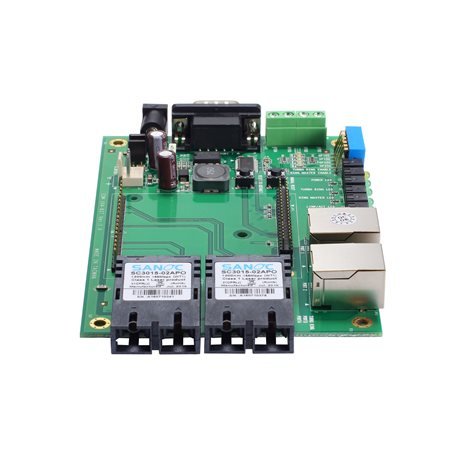

Moxa EOM-104-FO Evaluation Kit

Artikelnummer: EOM-104-FO Evaluation Kit
Kategorie: EOM-104 Series
Hersteller: Moxa

Evaluation kit with an EOM-104-FO switch module and evaluation board with 2 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connector for testing and application development

638,96 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EOM-104-FO Evaluation Kit

EOM-104 Series

Evaluation kit with an EOM-104-FO switch module and evaluation board with 2 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connector for testing and application development

Ethernet Interface

Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.1p for Class of Service
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
10/100BaseT(X) Port
- 2
100BaseFX Port
- 2
Connector
- 1 connector with 2 x 20 pins, 2 connectors with 1 x 9 pins, and 1 connector with 2 x 2 pins
GPIO
- 4 x Programmable I/O pins

Ethernet Software Features

Protocols
- BOOTP, DHCP Client, HTTP, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
- Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Switch Properties

MAC Table Size
- 1 K
Packet Buffer Size
- 512 kbits

Serial Interface

Console Port
- RS-232 (TxD, RxD, DTR, DSR)

Power Parameters

Input Current
- 1.1 A @ 3.3 VDC

Physical Characteristics

Dimensions
- 54 x 60 x 8.25 mm (2.13 x 2.36 x 0.32 in)
Weight
- 21 g (0.046 lb)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class A

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
