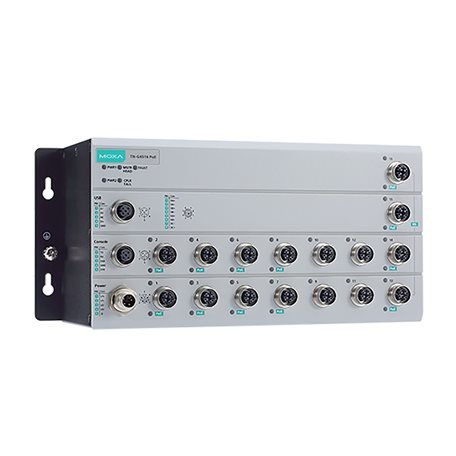

Moxa TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-CT-T

Artikelnummer: TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-CT-T
Kategorie: TN-G4500 Series
Hersteller: Moxa

EN 50155 Layer 2 multi-Gigabit switch with 4 Gigabit Ethernet ports, 8 Gigabit Ethernet PoE+ ports, 2 10G Ethernet PoE+ ports, 2 10G Ethernet ports with bypass relay, 120 W PoE power budget, 24 to 110 VDC power input, IP40, -40 to 70°C operating temperature, conformal coating

8.103,62 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-CT-T

TN-G4500 Series

Ethernet Interface

10GBaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)
- TN-G4516 BP models: 2
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)
- 4
PoE Ports (10GBaseT(X), M12 X-coded 8-pin female connector)
- TN-G4516 non-BP models: 4
  TN-G4516 BP models: 2
PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)
- 8
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3bz for 5GBaseT and 2.5GBaseT
  IEEE 802.3an for 10GBaseT
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3af/at for PoE/PoE+ output
  IEEE 802.3x for flow control

Ethernet Software Features

Broadcast Forwarding
- Broadcast forwarding
Configuration Options
- Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
Filter
- 802.1Q
  DHCP Filter
  GMRP
  GVRP
  IGMP Snooping v1/v2/v3
  IGMP Querier
  Port-based VLAN
  Static Multicast
Industrial Protocols
- SNMPv1/v2c/v3
Management
- Account Management
  Back Pressure Flow Control
  DHCP Client (options 1/3/50/51/53/54/55/57/66/67)
  DHCP option 82 (relay agent)
  DHCP Server (options 1/3/12/15/42/50/55)
  DNS Server
  Flow control
  HTTP
  ICMP
  IPv4/IPv6
  Loop Protection
  LLDP
  Port-based DHCP Server
  Port Mirror
  QoS/CoS/ToS
  RARP
  RMON
  SMTP
  SNMP Inform
  Syslog
  Telnet
  SNMP Trap
MIB
- Bridge MIB
  Ethernet-like MIB
  MIB-II
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB
Redundancy Protocols
- LACP
  MSTP
  RSTP
  STP
  Static Port Trunk
  Turbo Chain
  Turbo Ring v2
  Turbo Ring with DRC
Security
- Access control list
  TACACS+
  Broadcast storm protection
  HTTPS/SSL
  Local Account Accessibility
  Port Lock
  RADIUS
  Rate Limit
  SSH
  Trust access control
Time Management
- NTP Server/Client
  SNTP

Switch Properties

IGMP Groups
- 256
Max. No. of VLANs
- 256
Priority Queues
- 4
VLAN ID Range
- VID 1 to 4094
Jumbo Frame Size
- 9.216 KB

LED Interface

LED Indicators
- PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE

Serial Interface

Console Port
- RS-232 (M12 B-coded 5-pin female connector)

Power Parameters

Input Voltage
- 24/36/48/72/96/110 VDC
No. of Power Inputs
- 2
Operating Voltage
- 16.8 to 137.5 VDC
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported
Total PoE Power Budget
- 120 W
Input Current
- 7.5 A @ 24 VDC
Power Connector
- M12 K-coded 5-pin male connector

Physical Characteristics

Housing
- Metal
IP Rating
- IP40
Dimensions
- 291.6 x 117.7 x 132.2 mm (11.48 x 4.63 x 5.20 in)
Weight
- TN-G4516 without bypass: 2,780g(6.13lb)
  TN-G4516 with bypass: 2,790g(6.15lb)
Installation
- Wall mounting
Protection
- -CT model with PCB conformal coating

Environmental Limits

Operating Temperature
- -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- 2000 m

Standards and Certifications

EMC
- EN 55032/35
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 6 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Freefall
- IEC 60068-2-31
Radio Frequency
- FCC
Railway
- EN 50121-4
  EN 50155
  IEC 60571
Railway Fire Protection
- EN 45545-2
Safety
- IEC 62368-1
  UL 62368-1
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- TN-G4516 without bypass: 436,136 hrs
  TN-G4516 with bypass: 435,764 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
