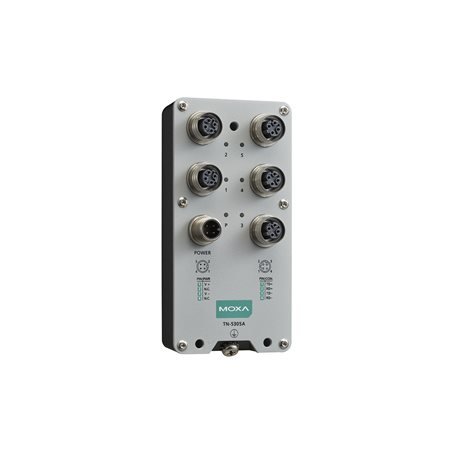

Moxa TN-5305A-WV-T

Moxa TN-5305A-WV-T

Artikelnummer: TN-5305A-WV-T
Kategorie: TN-5300A Series
Hersteller: Moxa

EN 50155 unmanaged Ethernet switch with 5 10/100BaseT(X) ports, M12 connector, single power input, 24 to 110 VDC, -40 to 70°C operating temperature

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.

Beschreibung

TN-5305A-WV-T

TN-5300A Series

EN 50155 unmanaged Ethernet switch with 5 10/100BaseT(X) ports, M12 connector, single power input, 24 to 110 VDC, -40 to 70°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
- 5
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3x for flow control

LED Interface

LED Indicators
- PWR, Ethernet ports, PoE ports

Switch Properties

Packet Buffer Size
- 768 kbits
MAC Table Size
- 2 K

Power Parameters

Input Current
- max. 0.1 A A @ 24 VDC
Input Voltage
- 24/36/48/72/96/110 VDC
Total PoE Power Budget
- 50.2 W
No. of Power Inputs
- 1
Operating Voltage
- 16.8 to 137.5 VDC
Power Connector
- M12 A-coded male connector
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Metal
IP Rating
- IP54
Dimensions
- 62.4 x 125.4 x 37.5 mm (2.46 x 4.94 x 1.48 in)
Weight
- 315 g (0.69 lb)
Installation
- Wall mounting
  DIN-rail mounting (with optional kit)

Environmental Limits

Operating Temperature
- -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- 3000 m

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Radio Frequency
- FCC
Environmental Testing
- IEC 60068-2-1, EN 50155
  IEC 60068-2-14, EN 50155
  IEC 60068-2-2, EN 50155
  IEC 60068-2-30, EN 50155
  IEC 60068-2-78
Railway
- EN 50121-4
  EN 50155
  IEC 60571
Railway Fire Protection
- EN 45545-2
Safety
- IEC 62368-1
  UL 62368-1
  EN 62368-1
Salt Spray Test
- EN 50155
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155
Package Vibration Test
- ISTA 1A
Package Drop Test
- ISTA 1A

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 6,612,892 hrs
Standards
- Telcordia SR332 Issue 4

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
