Moxa TRC-190-AC

Moxa TRC-190-AC

Artikelnummer: TRC-190-AC
Kategorie: TRC-190 Series
Hersteller: Moxa

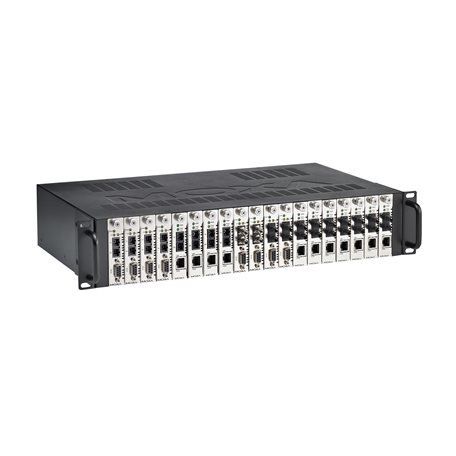

Rack chassis, 2U, single 110 to 240 VAC input, with 19 slots on front panel

700,21 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TRC-190-AC

TRC-190 Series

Rack chassis, 2U, single 110 to 240 VAC input, with 19 slots on front panel

Power Parameters

Input Voltage
- 100 to 240 VAC
No. of Power Inputs
- 2
Overload Current Protection
- Supported
Power Consumption
- 1.5 A @ 100 to 240 VAC

Physical Characteristics

Dimensions
- 440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in)
Installation
- 19-inch rack mounting
IP Rating
- IP30
Weight
- 5200 g (11.4 lb)

Environmental Limits

Ambient Relative Humidity
- 5 to 95% (non-condensing)
Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature (package included)
- -20 to 75°C (-4 to 167°F)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC)
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-2
  IEC 60068-2-3
Safety
- IEC 62368-1, UL 62368-1
Vibration
- IEC 60068-2-6

MTBF

Time
- 1,055,112 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
