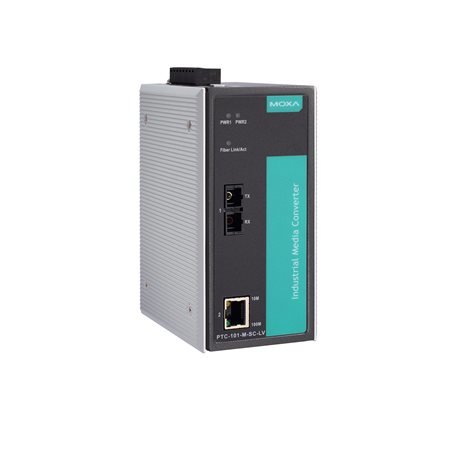

Moxa PTC-101-M-SC-HV

Artikelnummer: PTC-101-M-SC-HV
Kategorie: PTC-101 Series
Hersteller: Moxa

Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with SC connector, 1 isolated power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 85°C operating temperature

578,20 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

PTC-101-M-SC-HV

PTC-101 Series

Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with SC connector, 1 isolated power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 85°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 1
100BaseFX Ports (multi-mode SC connector)
- 1
Magnetic Isolation Protection
- 1.5 kV (built-in)

Optical Fiber

	100BaseFX
	Multi-Mode	Single-Mode
Wavelength	1300 nm	1310 nm
Max. TX	-10 dBm	0 dBm
Min. TX	-20 dBm	-5 dBm
RX Sensitivity	-32 dBm	-34 dBm
Link Budget	12 dB	29 dB
Typical Distance	5 km^a 4 km^b	40 km^c
Saturation	-6 dBm	-3 dBm
a. 50/125 µm, 800 MHz x km fiber optic cable b. 62.5/125 µm, 500 MHz x km fiber optic cable c. 9/125 µm single-mode fiber optic cable d. 9/125 µm single-mode fiber optic cable (80 km)

Power Parameters

Input Voltage
- 100 to 240 VAC, 100 to 240 VDC
Input Current
- 350 to 200 mA @ 100 to 240 VAC
  350 to 200 mA @ 100 to 240 VDC
Overload Current Protection
- Supported
Power Consumption
- 350 to 200 mA @ 100 to 240 VAC
  350 to 200 mA @ 100 to 240 VDC

Physical Characteristics

Housing
- Metal
Dimensions
- 152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)
Weight
- Packaged: 952 g (2.09 lb)
  Product only: 785 g (1.73 lb)
Installation
- DIN-rail mounting

Environmental Limits

Operating Temperature
- -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-14
  IEC 60068-2-2
  IEC 60068-2-3
Safety
- EN 62368-1, UL 62368-1, UL 60950-1
Vibration
- IEC 60068-2-6
Power Substation
- IEC 61850-3

MTBF

Time
- 4,660,534 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
