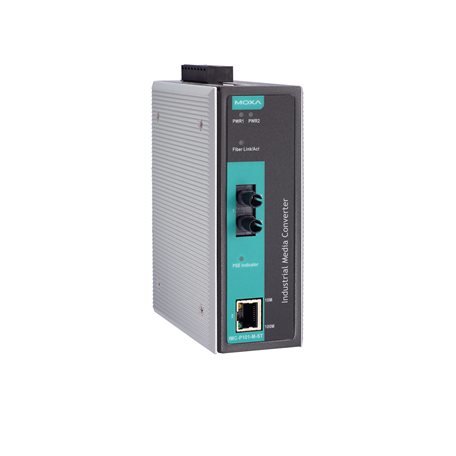

Moxa IMC-P101-M-ST-T

PoE industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode port with ST connector, -40 to 75°C operating temperature

732,06 €

exkl. 19% USt. , zzgl. (Standard)

Stk

PoE industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode port with ST connector, -40 to 75°C operating temperature

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Input Current
- 360 mA @ 12 to 57 VDC
  (HW Rev. 1.1.0 and later)
  430 mA @ 46 to 57 VAC
  (HW Rev. 1.0.1 and prior)
Input Voltage
- 12 to 57 VDC
  (HW Rev. 1.1.0 and later)
  46 to 57 VDC
  (HW Rev. 1.0.1 and prior)
Overload Current Protection
- Supported
