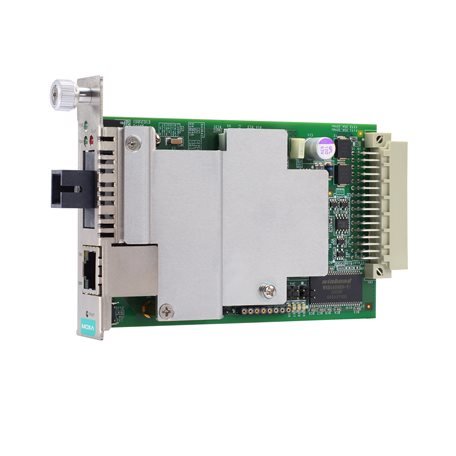

Moxa CSM-400-1225

10/100BaseT(X) to 100BaseFX slide-in management module converter, WDM-B single-mode SC connector, -20 to 55°C operating temperature

391,31 €

exkl. 19% USt. , zzgl. (Standard)

Stk

10/100BaseT(X) to 100BaseFX slide-in management module converter, WDM-B single-mode SC connector, -20 to 55°C operating temperature

Optical Fiber

		100BaseFX			100 BaseFX WDM-A	100 BaseFX WDM-B
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km	20 km	20 km
Wavelength	Typical (nm)	1300		1310	1310/1550	1550/1310
	TX Range (nm)	1260 to 1360		1280 to 1340	1280 to 1340	1480 to 1600
	RX Range (nm)	1100 to 1600		1100 to 1600	1480 to 1600	1280 to 1340
Optical Power	TX Range (dBm)	-10 to -20		0 to -5	-5 to 15	-5 to 15
	RX Range (dBm)	-3 to -32		-3 to -34	-3 to -32	-3 to -32
	Link Budget (dB)	12		29	17	17
	Dispersion Penalty (dB)	3		1	1	1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC); Signal: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-14
  IEC 60068-2-2
  IEC 60068-2-3
Safety
- EN 62368-1
  UL 62368-1
Vibration
- IEC 60068-2-6
