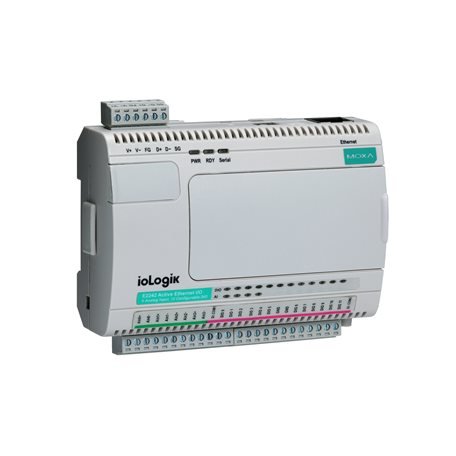

Moxa ioLogik E2262

Artikelnummer: ioLogik E2262
Kategorie: ioLogik E2200 Series
Hersteller: Moxa

Universal controller, 8 TCs, 4 DOs, Click&Go, -10 to 60°C operating temperature

586,53 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

ioLogik E2262

ioLogik E2200 Series

Universal controller, 8 TCs, 4 DOs, Click&Go, -10 to 60°C operating temperature

Control Logic

Language
- Click&Go

Input/Output Interface

Digital Output Channels
- 4
Thermocouple Channels
- 8
Buttons
- Reset button
Rotary Switch
- 0 to 9
Isolation
- 3k VDC or 2k Vrms

Digital Outputs

Connector
- Screw-fastened Euroblock terminal
I/O Type
- Sink
I/O Mode
- DO or pulse output
Current Rating
- 200 mA per channel
Pulse Output Frequency
- 1 kHz
Over-Current Protection
- 0.65 A per channel @ 25°C
Over-Temperature Shutdown
- 175°C (min.)
Over-Voltage Protection
- 45 VDC (typical)

Thermocouples

Connector
- Screw-fastened Euroblock terminal
Sensor Type
- J, K, T, E, R, S, B, N
Millivolt Type
- ±19.532 mV
  ±39.062 mV
  ±78.126 mV
  Fault and over-voltage protection: -35 to +35 VDC (power off); -25 to +30 VDC (power on)
Resolution
- 16 bits
Millivolt Accuracy
- ±0.1% FSR @ 25°C
  ±0.3% FSR @ -10 to 60°C
TC Accuracy
- Types J, T, E, S, B: ±5°C
  Types K, R, N: ±8°C
CJC Accuracy
- ±0.5°C @ 25°C
  ±1.5°C @ -40 to 75°C
Sampling Rate
- All channels: 12 samples/sec
  Per channel: 1.5 samples/sec
Input Impedance
- 1 mega-ohms (min.)

LED Interface

LED Indicators
- PWR, RDY, Serial, I/O Status

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 1
Magnetic Isolation Protection
- 1.5 kV (built-in)

Ethernet Software Features

Configuration Options
- Windows Utility (ioAdmin), Web Console (HTTP)
Industrial Protocols
- Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC (Active Tag), MXIO Library, CGI commands
Management
- BOOTP, IPv4, SMTP, DHCP Client, HTTP, TCP/IP
MIB
- Device Settings MIB
Time Management
- SNTP

Security Functions

Authentication
- Local database
Encryption
- HMAC
Security Protocols
- SNMPv3

Modbus TCP

Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16
Mode
- Server (Slave)

Serial Interface

Connector
- Terminal block
Serial Standards
- RS-485
No. of Ports
- 1
Baudrate
- 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Parity
- None
Data Bits
- 8
Stop Bits
- 1
Flow Control
- None

Serial Signals

RS-485-2w
- Data+, Data-, GND

Serial Software Features

Industrial Protocols
- Modbus RTU Master

Platform

Real-time Clock (RTC)
- Real-time clock with battery backup

Power Parameters

Power Connector
- Screw-fastened Euroblock terminal
No. of Power Inputs
- 1
Input Voltage
- 12 to 36 VDC
Power Consumption
- 160 mA @ 24 VDC

Physical Characteristics

Dimensions
- 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)
Weight
- 250 g (0.55 lb)
Installation
- DIN-rail mounting, Wall mounting
Wiring
- I/O cable, 16 to 26 AWG
  Power cable, 16 to 26 AWG
Housing
- Plastic

Environmental Limits

Operating Temperature
- -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

Safety
- UL 508
EMC
- EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
Freefall
- IEC 60068-2-32

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 341,063 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
